Our Progress on the 2019 Amazon Fires

Volunteer holding 50 fire protection vests
Volunteer holding 50 fire protection vests

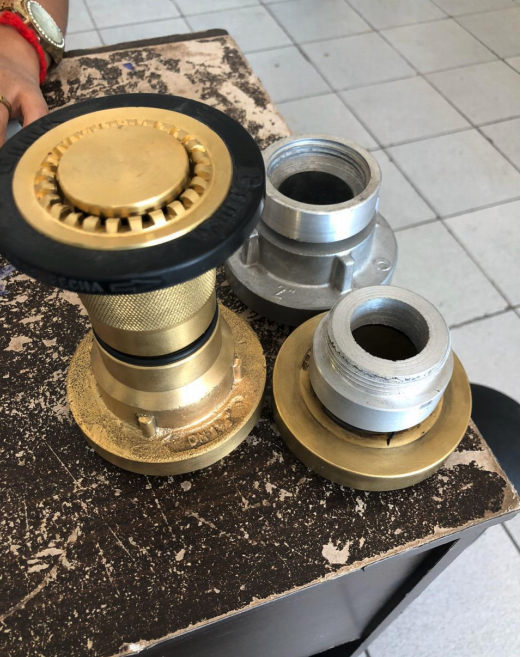

Tools for the fire hose pump
Fire hose tools

As part of our current fire management efforts in Bolivia, we have been working with several organizations to generate reliable information to implement actions that are helping firefighters and inhabitants of affected areas. We have also been providing communities and governments with fire prevention training and supplies, so that local people can be better prepared and at the forefront of preventing and fighting forest fires.

Donations that we have received have been turning into immediate action during the heart of the fire season, enabling us to move quickly to support communities and governments in firefighting and prevention efforts.

MAAP #108: Understanding The Amazon Fires With Satellites, Part 2

Base Map. Updated Amazon fire hotspots map, August 20-26, 2019. Red, Orange, and Yellow indicate the highest concentrations of fire, as detected by NASA satellites that detect fires at 375 meter resolution. Data. VIIRS/NASA, MAAP.
Base Map. Updated Amazon fire hotspots map, August 20-26, 2019. Red, Orange, and Yellow indicate the highest concentrations of fire, as detected by NASA satellites that detect fires at 375 meter resolution. Data. VIIRS/NASA, MAAP.

Here we present an updated analysis on the Amazon fires, as part of our ongoing coverage and building off what we reported in MAAP #107.

First, we show an updated Base Map of the “fire hotspots” across the Amazon, based on very recent fire alerts (August 20-26). Hotspots (shown in red, orange, and yellow) indicate the highest concentrations of fire as detected by NASA satellites.

Our key findings include:

– The major fires do NOT appear to be in the northern and central Brazilian Amazon characterized by tall moist forest (Rondônia, Acre, Amazonas, Pará states),* but in the drier southern Amazon of Brazil and Bolivia characterized by dry forest and shrubland (Mato Grosso and Santa Cruz).

– The most intense fires are actually to the south of the Amazon, along the border of Bolivia and Paraguay, in areas characterized by drier ecosystems.

– Most of the fires in the Brazilian Amazon appear to be associated with agricultural lands. Fires at the agriculture-forest boundary may be expanding plantations or escaping into forest, including indigenous territories and protected areas.

– The large number of agriculture-related fires in Brazil highlights a critical point: much of the eastern Amazon has been transformed into a massive agricultural landscape over the past several decades. The fires are a lagging indicator of massive previous deforestation.

– We continue to warn against using satellite-based fire detection data alone as a measure of impact to Amazonian forests. Many of the detected fires are in agricultural areas that were once forest, but don’t currently represent forest fires.

In conclusion, the classic image of wildfires scorching everything in their path are currently more accurate for the unique and biodiverse dry forests of the southern Amazon then the moist forests to the north. However, the numerous fires at the agriculture-moist forest boundary are both a threat and stark reminder of how much forest has been, and continues to be, lost by deforestation.

Next, we show a series of 11 satellite images that show what the fires look like in major hotspots and how they are impacting Amazonian forests. The location of each image corresponds to the letters (A-K) on the Base Map.

*If anyone has detailed information to the contrary, please send spatial coordinates to maap@amazonconservation.org

Zooms A, B: Chiquitano Dry Forest (Bolivia)

Some of the most intense fires are concentrated in the dry Chiquitano of southern Bolivia. The Chiquitano is part of the largest tropical dry forest in the world and is a unique, high biodiversity, and poorly explored Amazonian ecosystem. Zooms A-C illustrate fires in the Chiquitano between August 18-21 of this year, likely burning a mixture of dry forest, scrubland, and grassland.

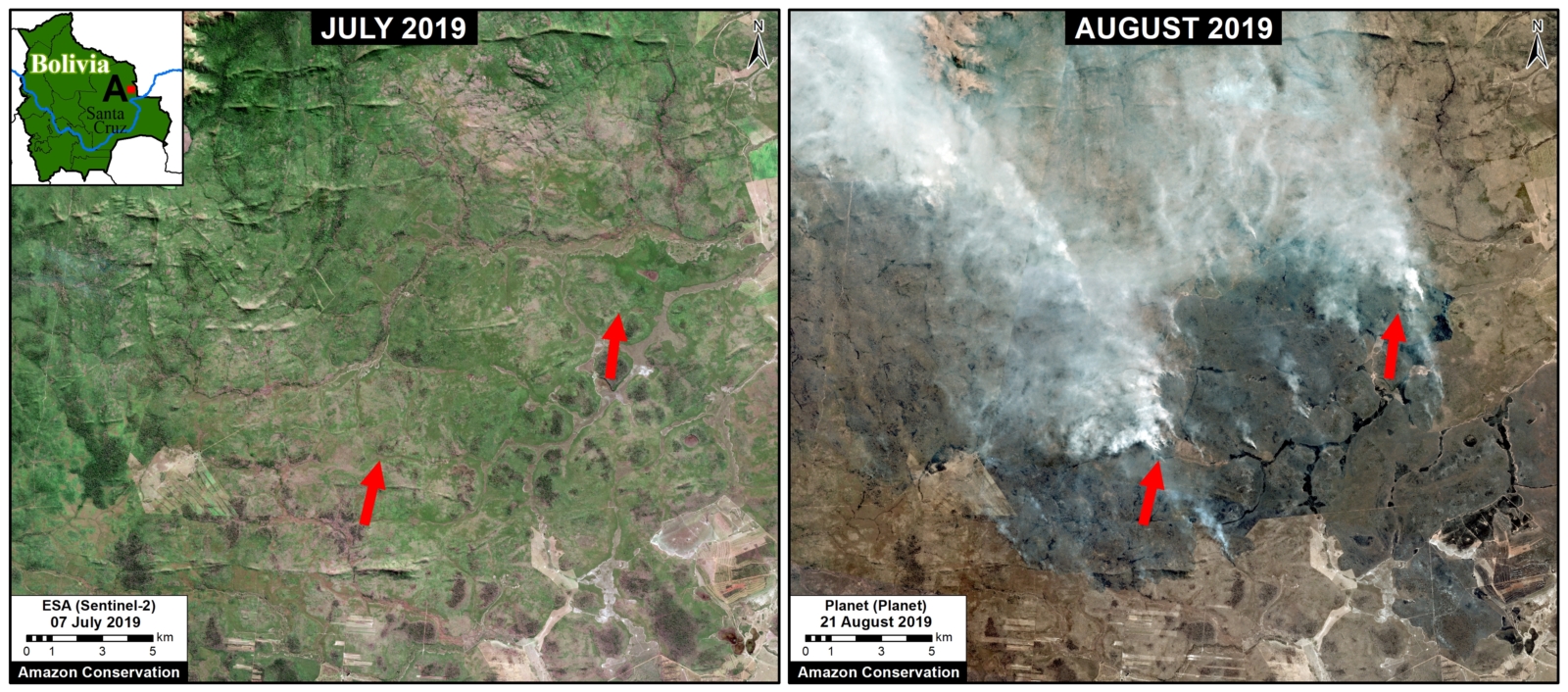

Zoom A. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet
Zoom A. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet

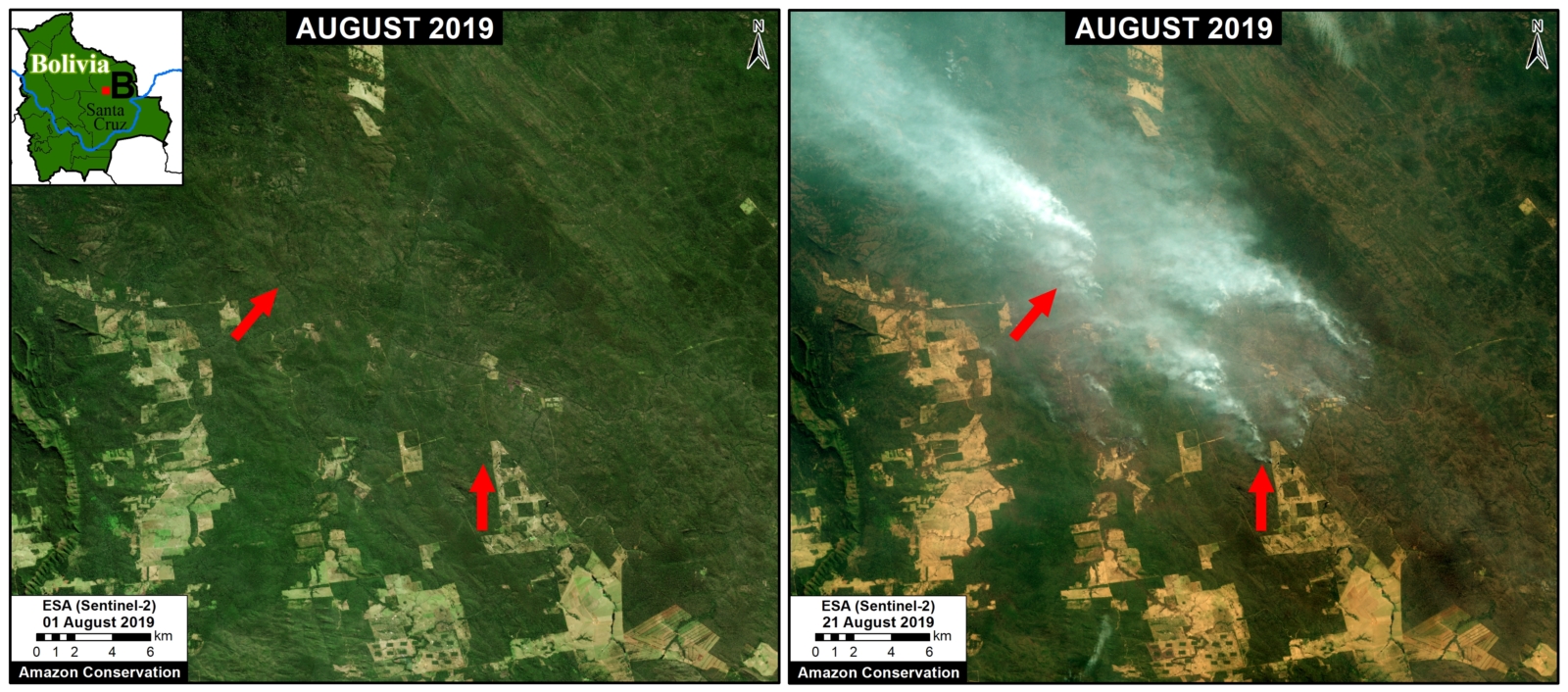

Zoom B. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet.
Zoom B. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet.

Zoom D: Beni Grasslands (Bolivia)

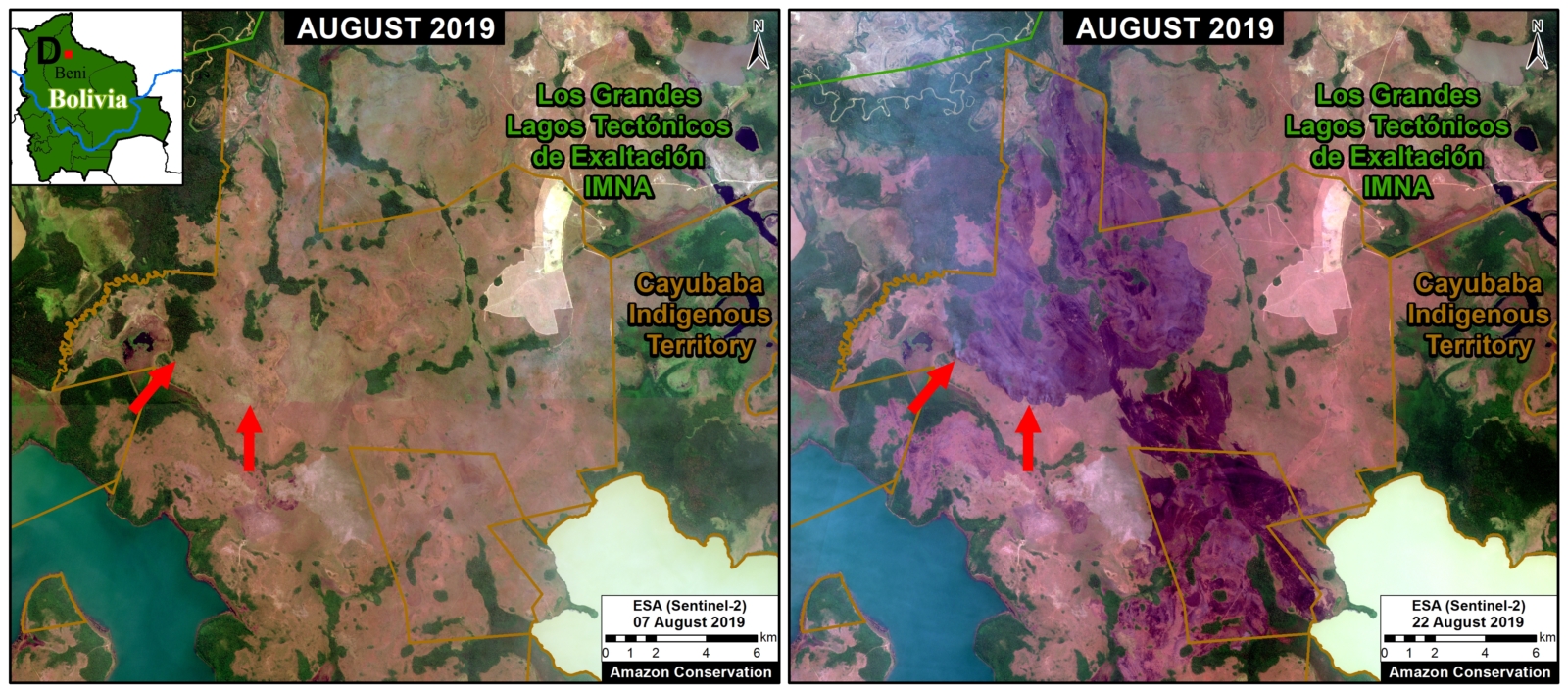

Zoom D. Recent fires and burned areas in Bolivia’s Beni grasslands. Data- ESA
Zoom D. Recent fires and burned areas in Bolivia’s Beni grasslands. Data- ESA

Zooms E,F,G,H: Brazilian Amazon (Amazonas, Rondônia, Pará, Mato Grosso)

Zoom E-H take us to moist forest forests of the Brazilian Amazon, where much of the media and social media attention has been focused. All fires we have seen in this area are in agricultural fields or at the agriculture-forest boundary. Note Zoom E is just outside a national park in Amazonas state; Zoom F shows fires at the agriculture-forest boundary in Rondônia state; Zoom G shows fires at the agriculture-forest boundary within a protected area in Pará state; and Zoom H shows fires at the agriculture-forest boundary in Mato Grosso state.

Zoom E. Fires at the agriculture-forest boundary outside a national park in Amazonas state. Data- Planet
Zoom E. Fires at the agriculture-forest boundary outside a national park in Amazonas state. Data- Planet
Zoom F. Fires at the agriculture-forest boundary in Rondônia state. Data- ESA
Zoom F. Fires at the agriculture-forest boundary in Rondônia state. Data- ESA



Zoom G. Fires at the agriculture-forest boundary within a protected area in Pará state
Zoom G. Fires at the agriculture-forest boundary within a protected area in Pará state

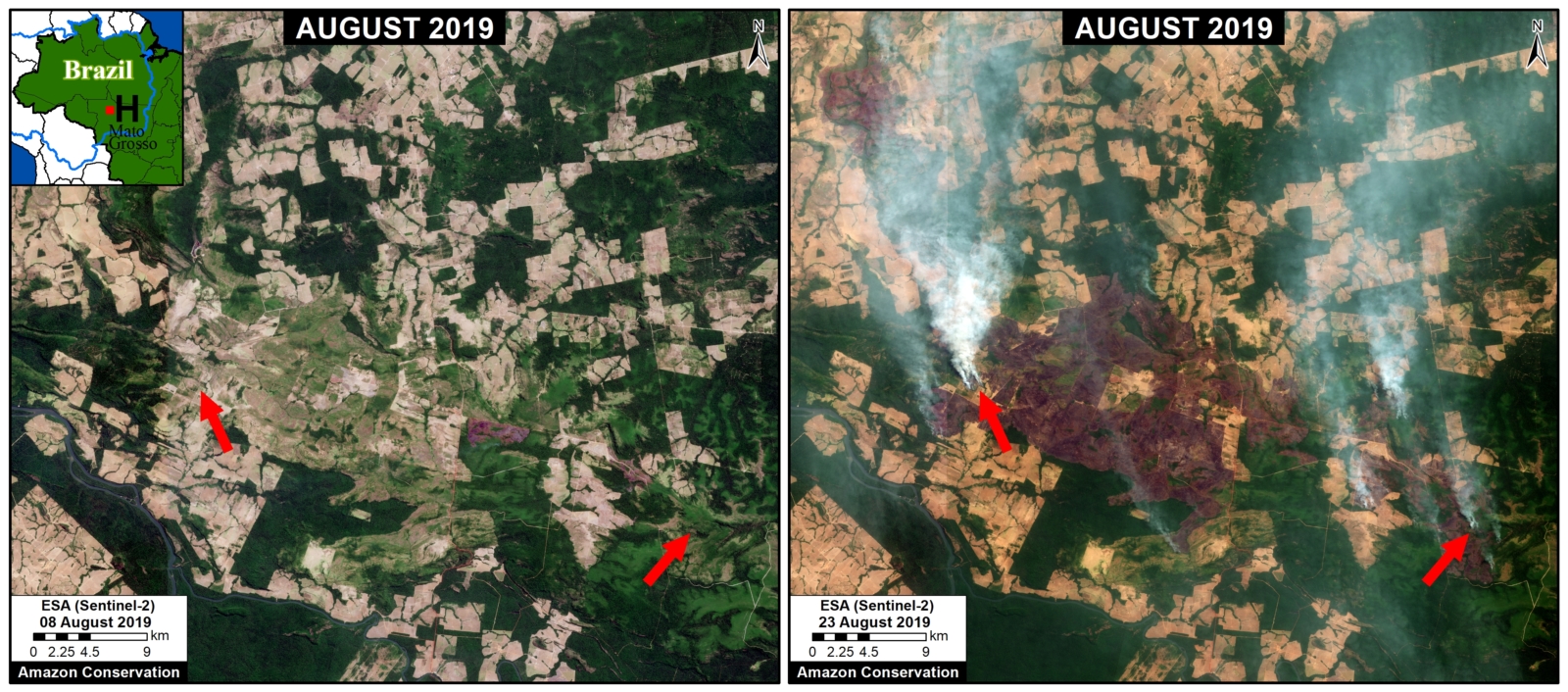

Zoom H. Fires at the agriculture-forest boundary in Mato Grosso. Data- ESA
Zoom H. Fires at the agriculture-forest boundary in Mato Grosso. Data- ESA

Zooms I, J: Southern Mato Grosso (Brazil)

Zooms I and J shows fires in grassland/scrubland at the drier southern edge of the Amazon Basin. Note both of these fires are within Indigenous Territories.

Zoom I. Fires within an Indigenous Territory at the drier southern edge of the Amazon Basin. Data- Planet
Zoom I. Fires within an Indigenous Territory at the drier southern edge of the Amazon Basin. Data- Planet
Zoom J. Fires within an Indigenous Territory at the drier southern edge of the Amazon Basin. Data- Planet
Zoom J. Fires within an Indigenous Territory at the drier southern edge of the Amazon Basin. Data- Planet

Zooms C, K: Bolivia/Brazil/Paraguay Border

Zooms C and K show large fires burning in the drier ecosytems at the Bolivia-Brazil-Paraguay border. This area is outside the Amazon Basin, but we include it due it’s magnitude.

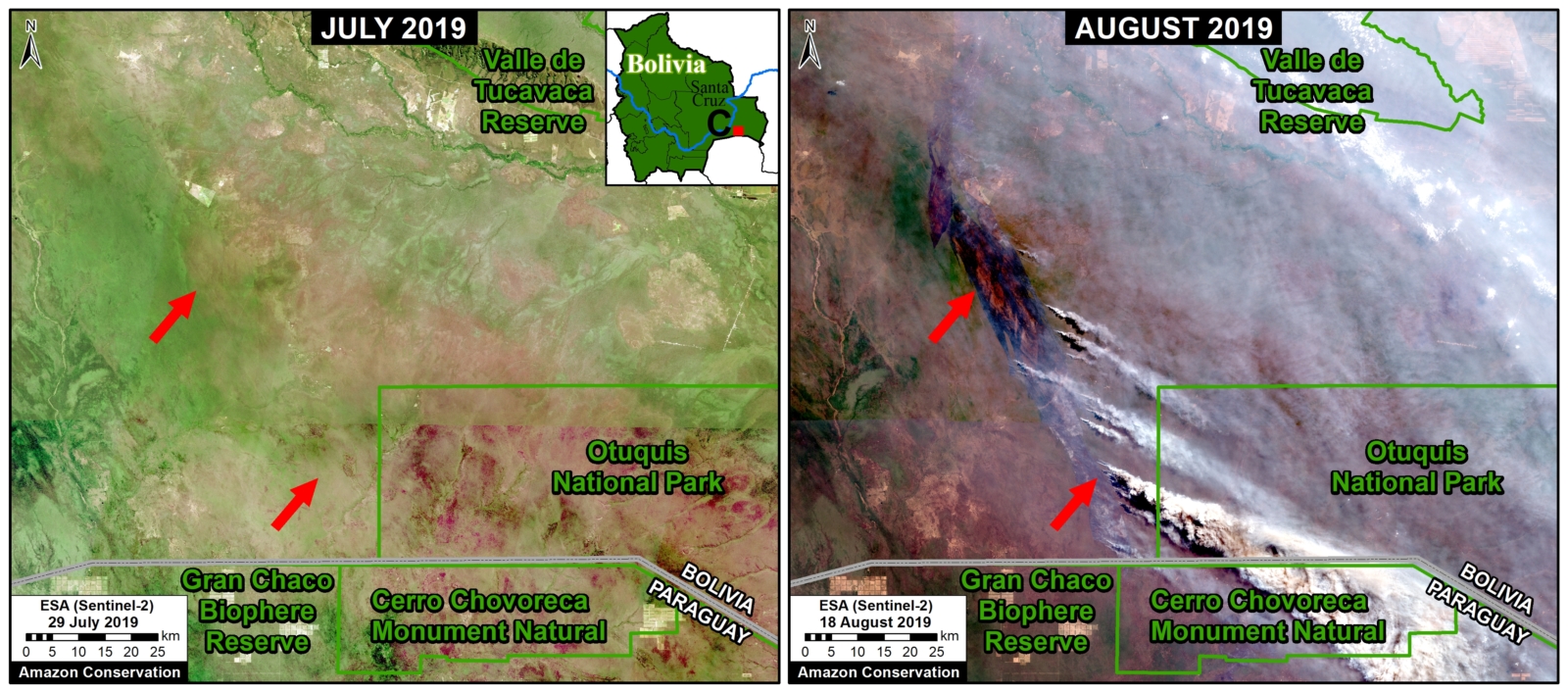

Zoom C. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet
Zoom C. Recent fires in the dry Chiquitano of southern Bolivia. Data- Planet

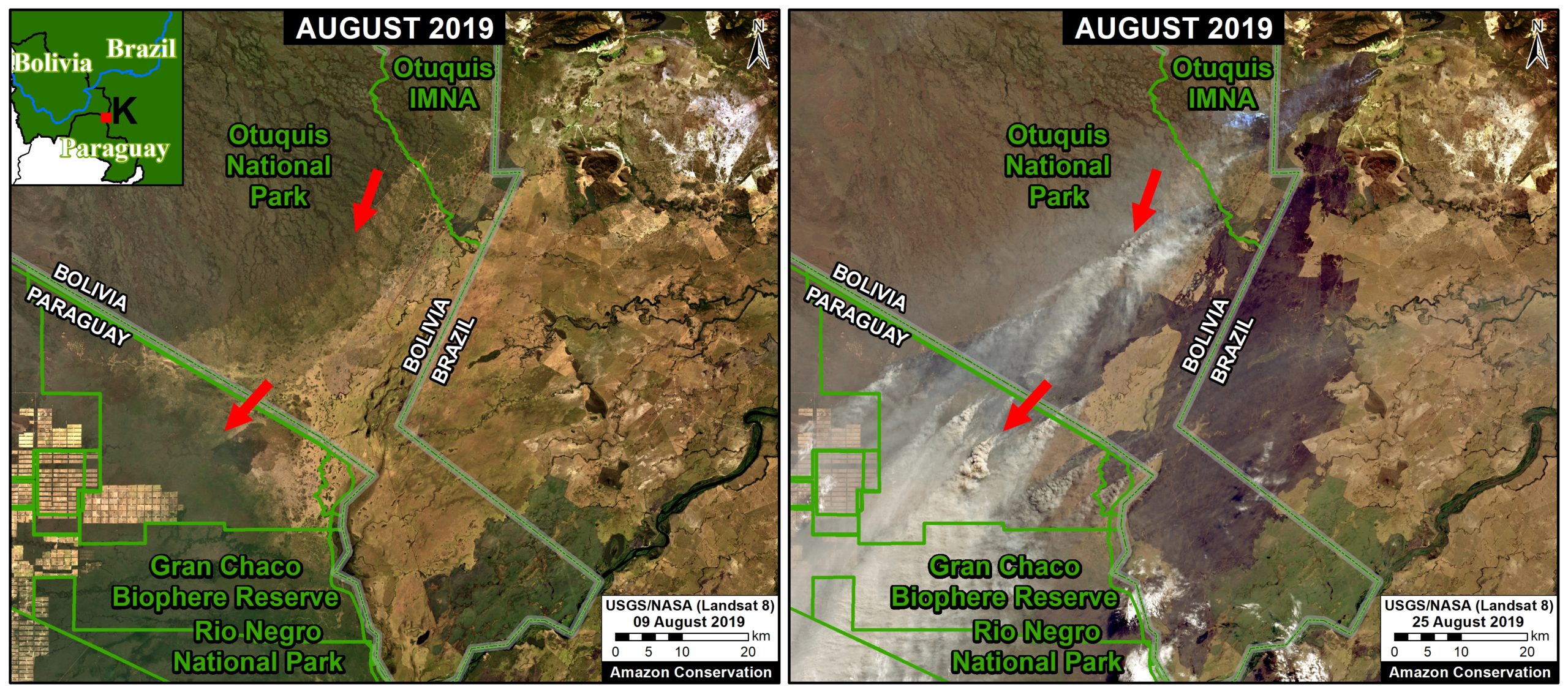

Zoom K. Large fires burning around the Gran Chaco Biosphere Reserve. Data- NASA:USGS.
Zoom K. Large fires burning around the Gran Chaco Biosphere Reserve. Data- NASA:USGS.

Acknowledgements

We thank  J. Beavers (ACA), A. Folhadella (ACA), M. Silman (WFU), S. Novoa (ACCA), M. Terán (ACEAA), and D. Larrea (ACEAA) for helpful comments to earlier versions of this report.

This work was supported by the following major funders: MacArthur Foundation, International Conservation Fund of Canada (ICFC), Metabolic Studio, and Global Forest Watch Small Grants Fund (WRI).

Citation

Finer M, Mamani N (2019) Seeing the Amazon Fires with Satellites. MAAP: 108.

Real-Time Satellite Information and Images of What is Happening in the Amazon

Following up on the current fires in the Amazon forests of Brazil, Bolivia, and Peru, we want to share with you our latest analysis of the situation. Please see today’s MAAP report, which provides real-time satellite data of the region and shows up-close satellite images of what the fires actually look like across all three countries, and how they are impacting Amazonian forests.

Continuous uncontrolled fires of this scale will bring the forest closer to an irreversible tipping point – a degree of deforestation at which the Amazon basin will no longer be able to generate its own rainfall and will become a fire-prone savanna. Some estimates place the level of deforestation needed to reach this tipping point at 20-25%. Current deforestation is at 17%.

That’s why our forest conservation efforts focus on prevention. We partner with local communities and landowners to develop and implement sustainable practices for forests and agricultural lands that reduce deforestation and build resilience against fires. We also work with national and municipal governments in Peru and Bolivia to ensure the protection of conservation areas that help keep us from reaching that tipping point.

In response to the current fires, we are collaborating with actors on the ground in Peru and Bolivia to generate reliable information to implement actions that will help local organizations and residents of the affected areas. Although we do not work on the ground in Brazil, our deforestation reports are available to the Brazilian government and public.

Read our latest MAAP report.

Statement on the fires in the Amazon forests of Bolivia and Brazil

The fires in the Amazon rainforest of Brazil and Bolivia have been burning for three weeks now. Thousands of acres of forests have been lost.

Although Amazon Conservation cannot stop the current fires from happening – at this point, only national and local authorities can – we can help prevent them from happening.  We are doing our part to support current efforts in Bolivia, by working with several organizations to generate reliable information to implement actions that are helping firefighters and inhabitants of affected areas.

Amazon Conservation has been working on the ground in the Amazon of Peru and Bolivia for 20 years, and providing local communities and governments with fire prevention training and supplies, so that local people can be better prepared and at the forefront of preventing and fighting forest fires. We also work directly with land owners to help them manage their land in a more sustainable manner, to reduce fire risk, if they do happen, to limit their spread and impact.

Not only do we carryout this on-the-ground, in-country support, but we also provide governments and the general public with key information about new fires in the western Amazon. Using our real-time satellite monitoring program (MAAP), we quickly locate burning forests and report this information in real-time to local authorities so that they can take action on the ground before the situation escalates as it has in Brazil. By releasing this information publicly on our website, we provide the public with key data on deforestation that is happening now so that they can compel authorities to take action.

“The majority of fires are caused by human activity,” said John Beavers, Amazon Conservation’s Executive Director. “And only human activity can prevent and stop them. Now more than ever we need to band together. In the same way that the world came together to reconstruct the Notre Dame Cathedral when it burned, we must do the same for the Amazon now.”

Consider making a donation to prevent fires in the Amazon here: https://bit.ly/2q2Tmwh

MAAP #107: Seeing The Amazon Fires With Satellites

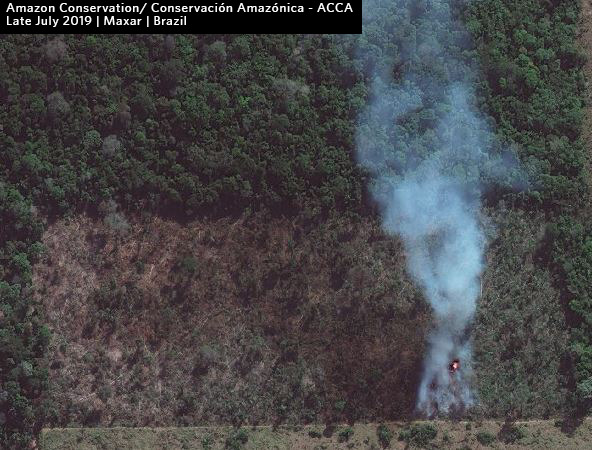

Recent fire (late July 2019) in the Brazilian Amazon. Data: Maxar.
Recent fire (late July 2019) in the Brazilian Amazon. Data: Maxar.

Fires now burning in the Amazon, particularly Brazil and Bolivia, have become headline news and a viral topic on social media.

Yet little information exists on the impact on the Amazon rainforest itself, as many of the detected fires originate in or near agricultural lands.

Here, we advance the discussion on the impact of the fires by presenting the first Base Map of current “fire hotspots” across three countries (Bolivia, Brazil, and Peru). We also present a striking series of satellite images that show what the fires look like in each hotspot and how they are impacting Amazonian forests. Our focus is on the most recent fires in August 2019.

Our key findings include:

  • Fires are burning Amazonian forest in BoliviaBrazil, and Peru.
    .
  • The fires in Bolivia are concentrated in the dry Chiquitano forests in the southern Amazon.
    .
  • The fires in Brazil are much more scattered and widespread, often associated with agricultural lands. Thus, we warn against using fire detection data alone as a measure of impact as many are clearing fields. However, many of the fires are at the agriculture-forest boundary and maybe expanding plantations or escaping into forest.
    .
  • Although not as severe, we also detected fires burning forest in southern Peru, in an area that has become a deforestation hotspot along the Interoceanic Highway.

Given the nature of the fires in Bolivia and Brazil, estimates of total burned forest area are still difficult to determine. We will continue monitoring and reporting on the situation over the coming days.

Base Map

The Base Map shows “fire hotspots” for the Amazonian regions of Bolivia, Brazil, and Peru in August 2019. The data comes from a NASA satellite that detects fires at 375 meter resolution. The letters (A-G) correlate to the satellite image zooms below.

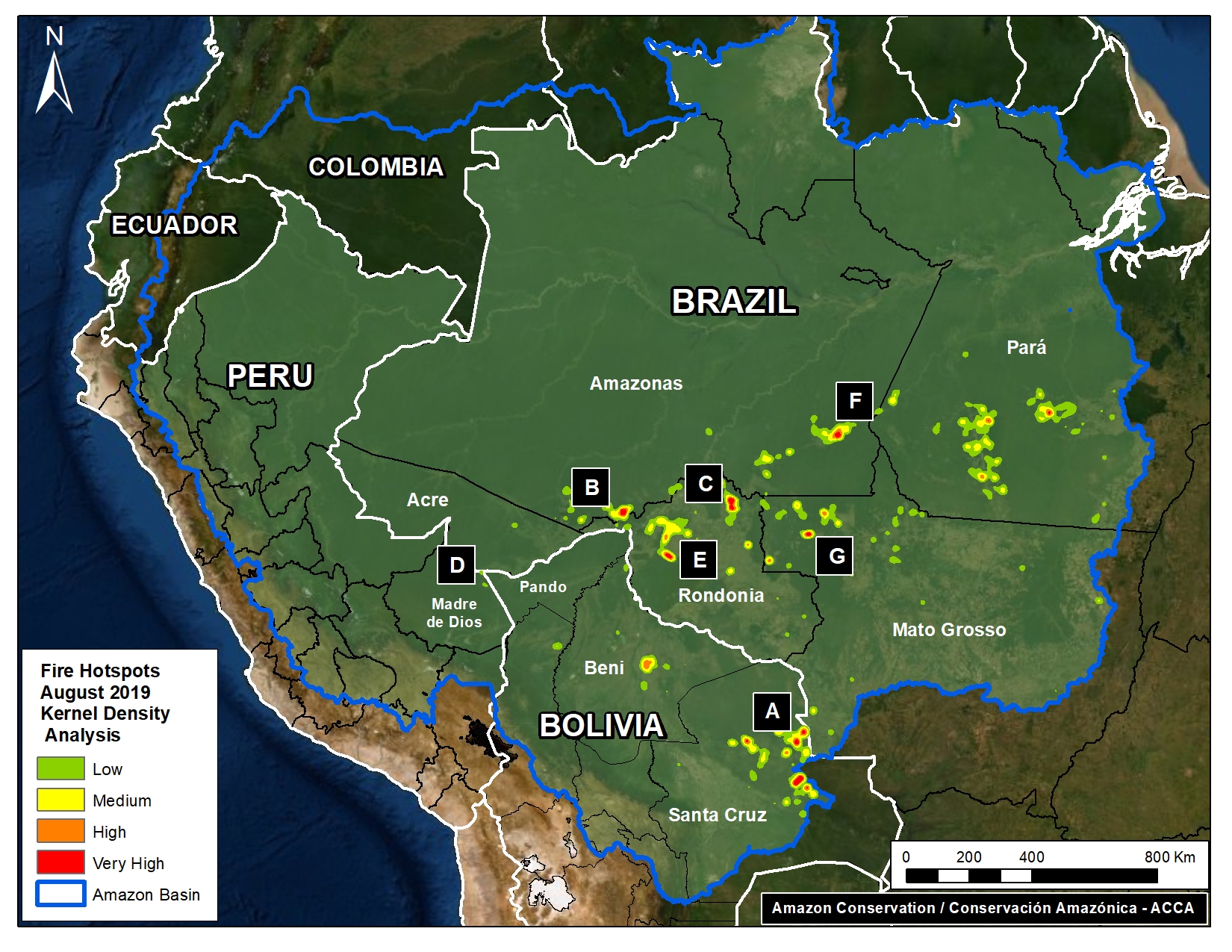

Base Map. Fire Hotspots in the Amazon during August 2019. Data- VIIRS:NASA.
Base Map. Fire Hotspots in the Amazon during August 2019. Data- VIIRS:NASA.

Zoom A: Southern Bolivian Amazon

Fires are concentrated in the dry Chiquitano of southern Bolivia. It is part of the largest tropical dry forest in the world. The fires coincide with areas that have been part of cattle ranching expansion in recent decades (References 1 and 2), suggesting that poor burning practices could be the cause of the fires. Ranching using sown pastures has previously been referred to as a direct cause of forest loss in Bolivia (References 2 and 3). The Bolivian National Service of Meteorology and Hydrology (SENAMHI) issued high wind alerts in July and August for southern Bolivia, which could have led to the expansion of poorly managed fires. Also, August is usually the driest month of the year in this region. These conditions could explain the origin (poor fire practice) and expansion (little rain and strong winds) of the current fires.

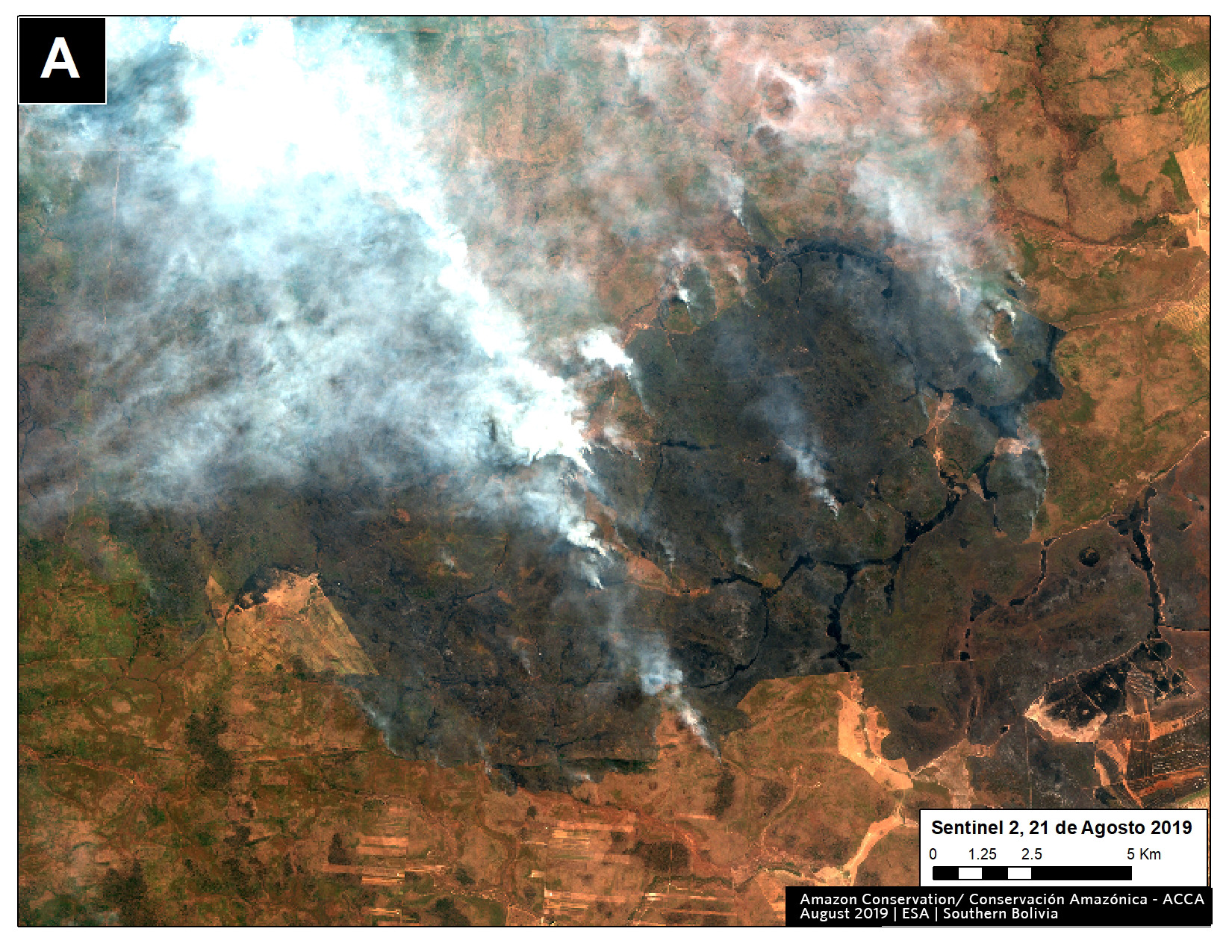

Zoom A1. Fire in southern Bolivian Amazon. Data- ESA
Zoom A1. Fire in southern Bolivian Amazon. Data- ESA

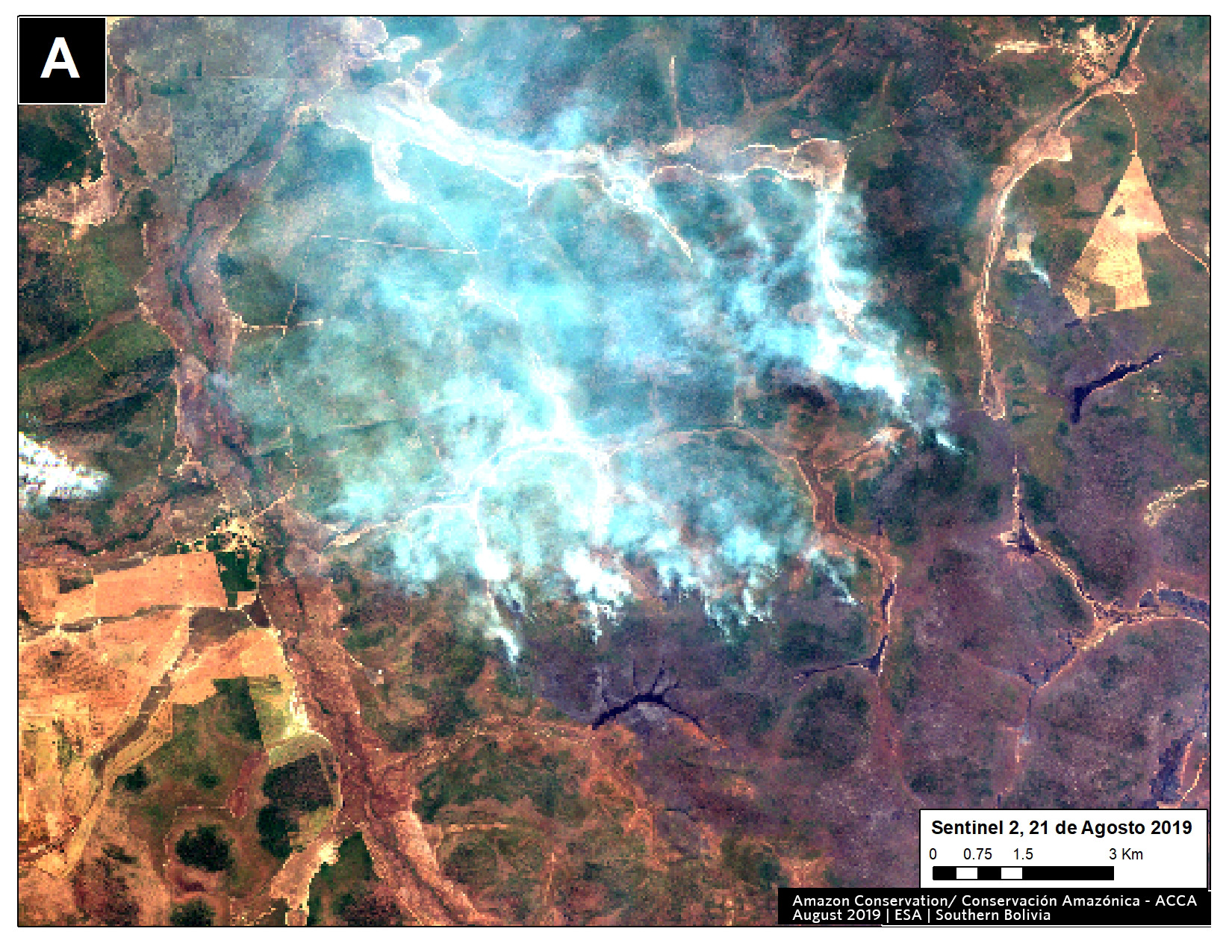

Zoom A2. Fire in southern Bolivian Amazon. Data- ESA
Zoom A2. Fire in southern Bolivian Amazon. Data- ESA

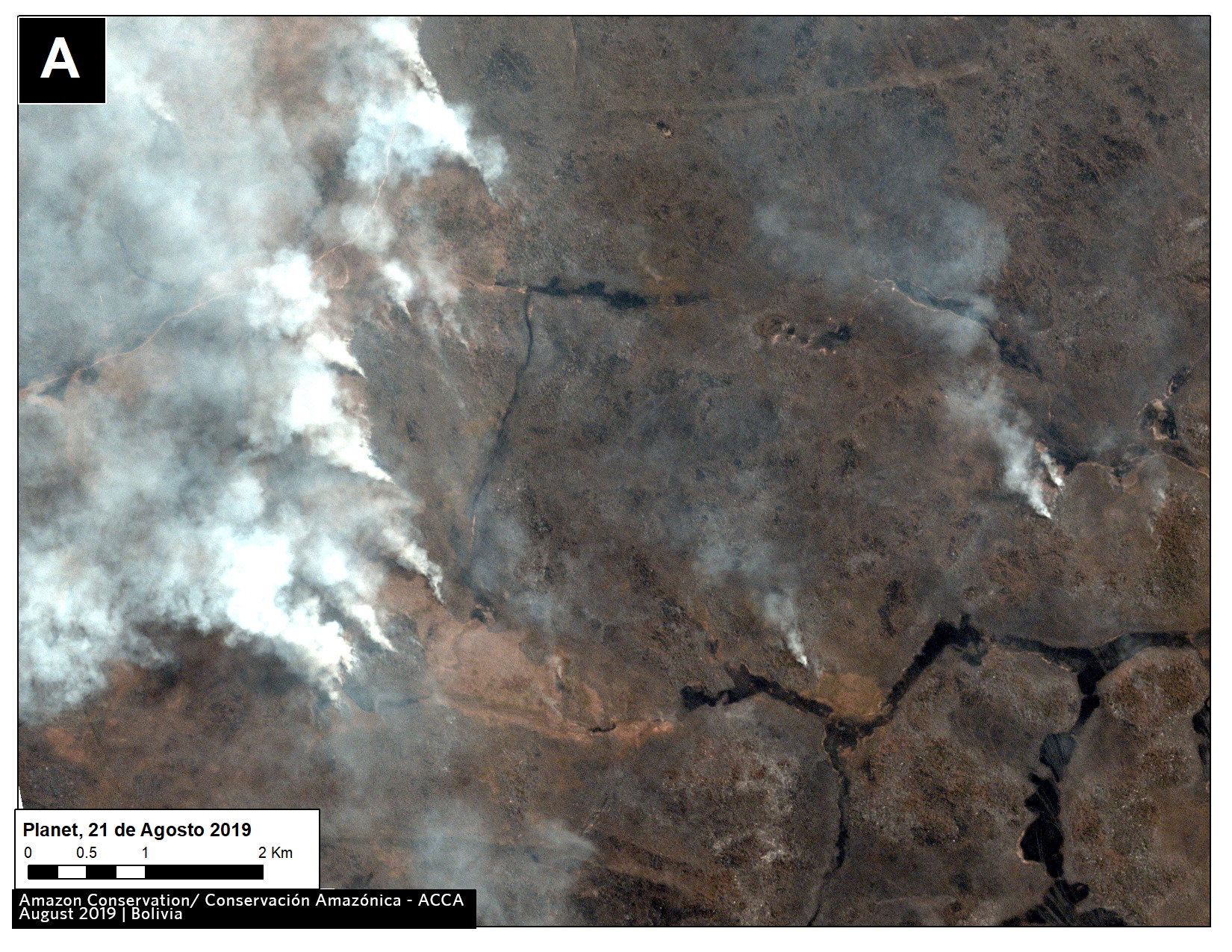

Zoom A3. Fire in southern Bolivian Amazon. Data- Planet
Zoom A3. Fire in southern Bolivian Amazon. Data- Planet

Zooms B, C, E, F, G: Western Brazilian Amazon

The major fires in western Brazil seem to be at the agriculture-forest boundary. Note that Zoom B shows fire in a protected area in Amazonas state; Zoom C seems to show fire escaping (or deliberately set) in the primary forests in Rondonia state; and Zooms F and G seems to show fire expanding plantation into forest in Amazonas and Mato Grosso states, respectively.

Zoom B. Fire in a protected area in Amazonas state. Data- ESA
Zoom B. Fire in a protected area in Amazonas state. Data- ESA

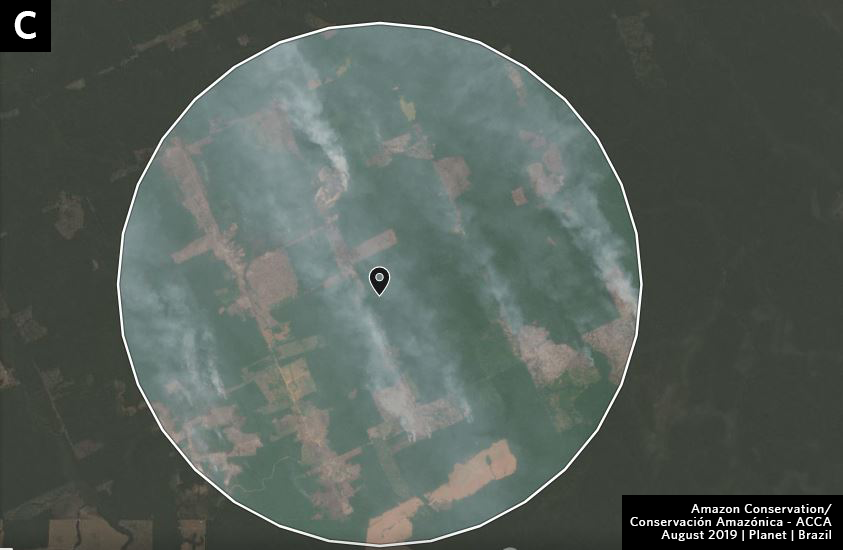

Zoom C. Fires at agriculture-forest boundary in Rondonia state. Data- Sentinel
Zoom C. Fires at agriculture-forest boundary in Rondonia state. Data- Sentinel

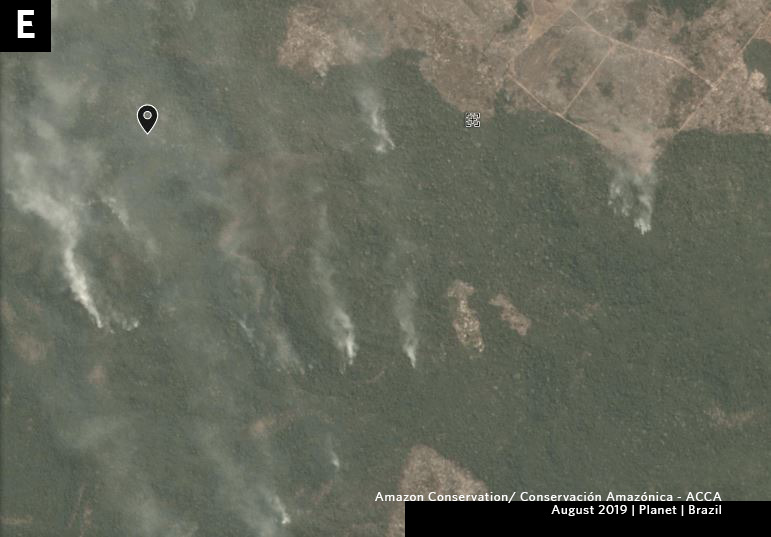

Zoom E. Fire escaping (or deliberately set) in the primary forests in Rondonia state. Data- Planet
Zoom E. Fire escaping (or deliberately set) in the primary forests in Rondonia state. Data- Planet

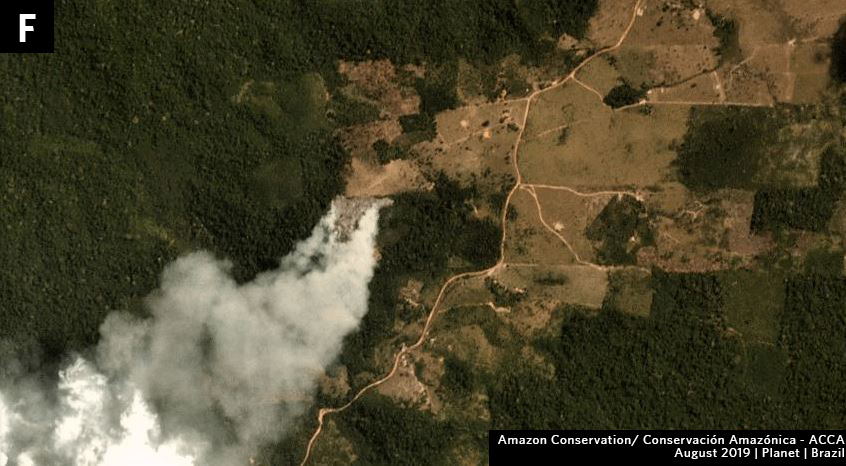

Zoom F. Fire that seems to be expanding plantation into forest in Amazonas state. Data- Planet.
Zoom F. Fire that seems to be expanding plantation into forest in Amazonas state. Data- Planet.

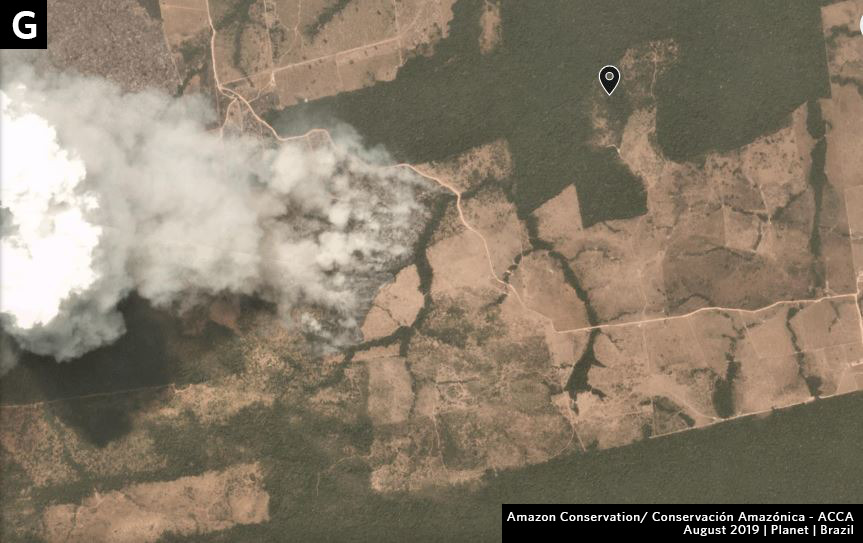

Zoom G. Fire that seems to be expanding plantation into forest in Mato Grosso state. Data- Planet
Zoom G. Fire that seems to be expanding plantation into forest in Mato Grosso state. Data- Planet

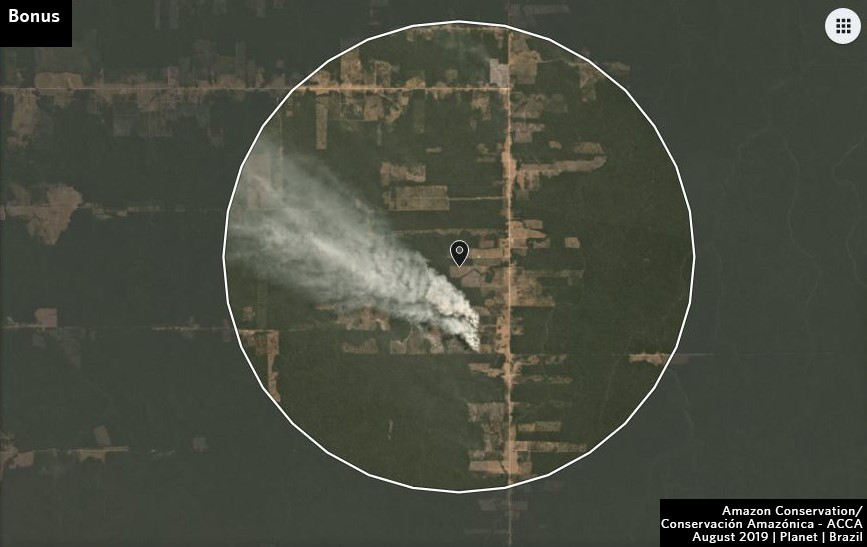

Bonus Zoom. Recent fire in Brazilan Amazon. Data- Planet
Bonus Zoom. Recent fire in Brazilan Amazon. Data- Planet



Zoom D: Southern Peruvian Amazon

Fires burning forest near the town of Iberia, an area along the Interoceanic Highway that has become a deforestation hotspot in the region of Madre de Dios (see MAAP #28 and MAAP #47).

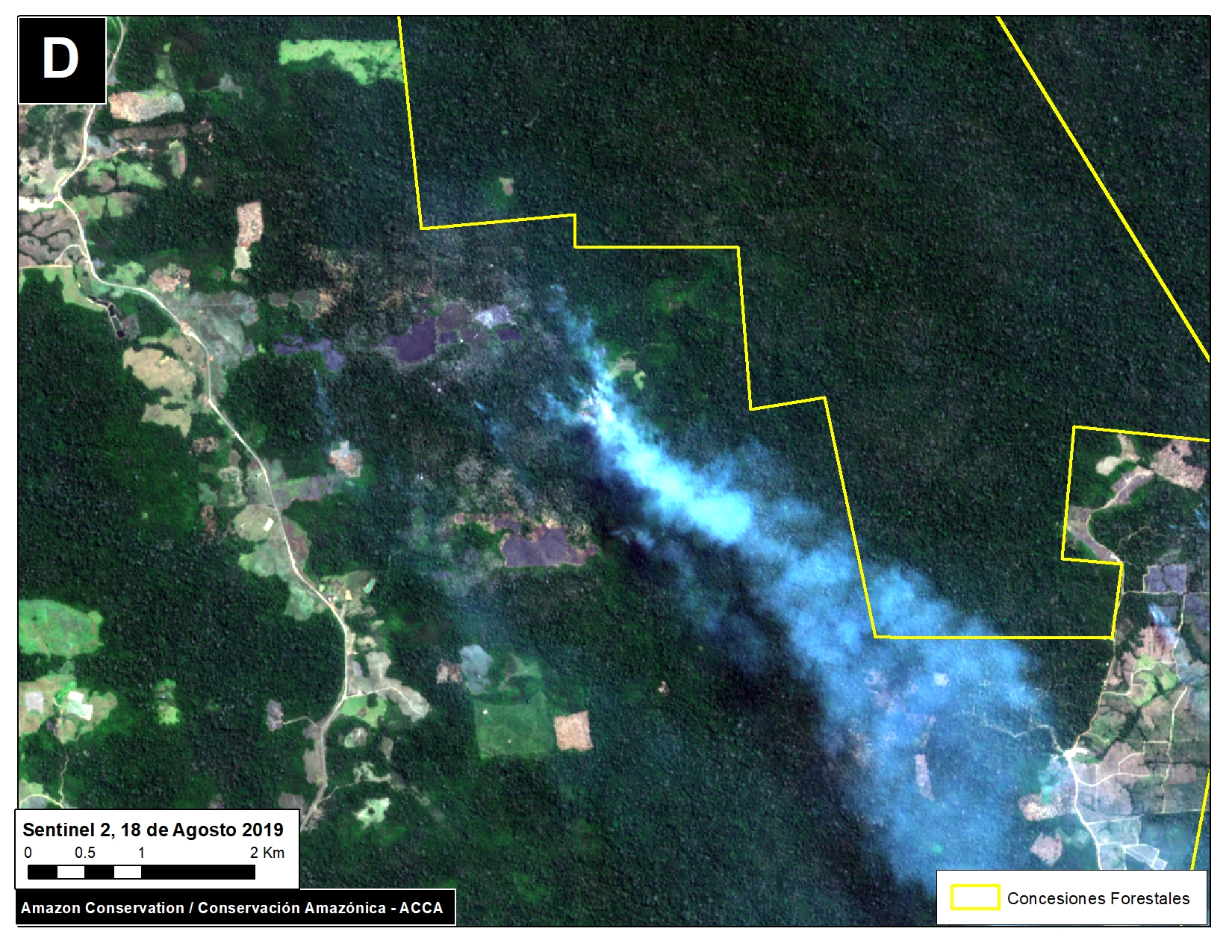

Zoom D. Fire in southern Peruvian Amazon (near Iberia, Madre de Dios). Data- ESA
Zoom D. Fire in southern Peruvian Amazon (near Iberia, Madre de Dios). Data- ESA

Additional References

We have these to be some of the most informative additional references:

New York Times, Aug 24

Global Forest Watch, Aug 23

Technical References

1 Müller, R., T. Pistorius, S. Rohde, G. Gerold & P. Pacheco. 2013. Policy options to reduce deforestation based on a systematic analysis of drivers and agents in lowland Bolivia. Land Use Policy 30(1): 895-907. http://dx.doi.org/10.1016/j. landusepol.2012.06.019

Muller, R., Larrea-Alcázar, D.M., Cuéllar, S., Espinoza, S. 2014.  Causas directas de la deforestación reciente (2000-2010) y modelado de dos escenarios futuros  en las tierras bajas de Bolivia. Ecología en Bolivia 49: 20-34.

Müller, R., P. Pacheco & J. C. Montero. 2014. El contexto de la deforestación y degradación de los bosques en Bolivia: Causas, actores e instituciones. Documentos Ocasionales CIFOR 100, Bogor. 89 p.

Acknowledgements

We thank  J. Beavers, D. Larrea, T. Souto, M. Silman, A. Condor, and G. Palacios for helpful comments to earlier versions of this report.

This work was supported by the following major funders: MacArthur Foundation, International Conservation Fund of Canada (ICFC), Metabolic Studio, and Global Forest Watch Small Grants Fund (WRI).

Citation

Novoa S, Finer M (2019) Seeing the Amazon Fires with Satellites. MAAP: 107.

MAAP #106: Deforestation Impacts 4 Protected Areas In The Colombian Amazon (2019)

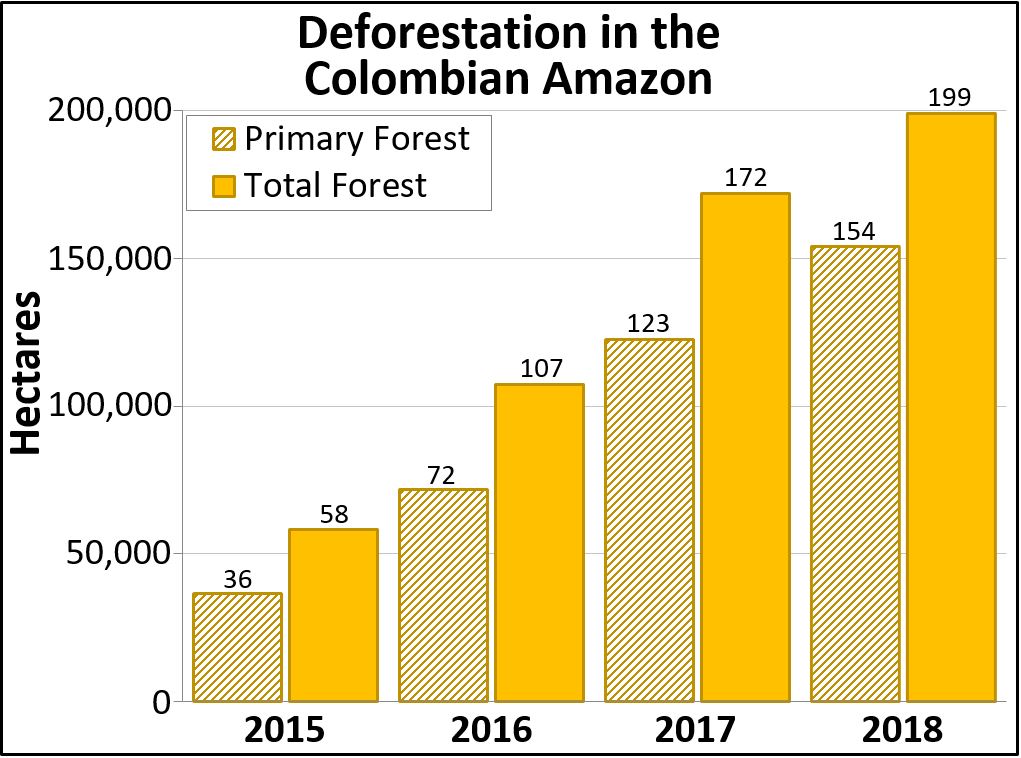

Table 1. Deforestation in the Colombian Amazon. Data- Hansen:UMD:Google:USGS:NASA
Table 1. Deforestation in the Colombian Amazon. Data- Hansen:UMD:Google:USGS:NASA

We continue our focus on the northwest Colombian Amazon,* one of the most intense deforestation hotspots in the western Amazon (see MAAP# 100).

Here, we analyze deforestation data over the past five years (2015-19) to better understand current trends and patterns.

We found a major increase in deforestation as of 2016. The Colombian Amazon lost nearly 1.2 million acres (478,000 hectares) of forest between 2016 and 2018. Of this, 73% (860,000 acres) was primary forest (see Table 1).

One of the main deforestation drivers in the region is conversion to pasture for land grabbing or cattle ranching.

Next, we provide a real-time update of 2019, based on early warning forest alerts (GLAD alerts) from the University of Maryland/Global Forest Watch), updated through July 25, 2019.

*MAAP in Colombia represents a collaboration between Amazon Conservation and its Colombian partner, the Foundation for Conservation and Sustainable Development (FCDS).”

Deforestation 2019

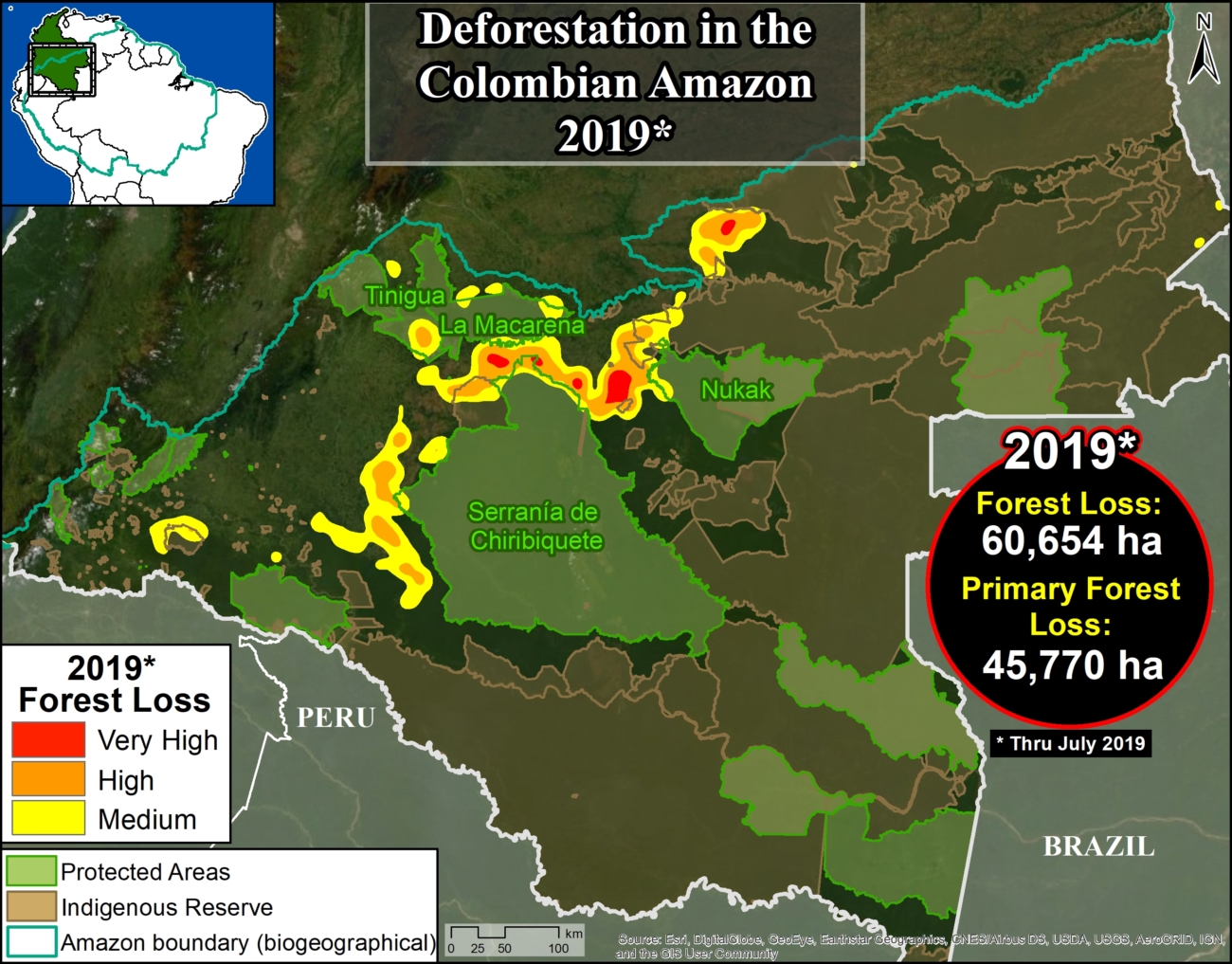

Base Map. Deforestation hotspots in Colombian Amazon. Data- UMD:GLAD, RUNAP, RAISG
Base Map. Deforestation hotspots in Colombian Amazon. Data- UMD:GLAD, RUNAP, RAISG

The GLAD alerts estimate the additional loss of 150,000 acres (60,654 hectares) in the first 7 months of 2019 (through end of July). Of  this, 75% (113,000 acres) was primary forest.

The Base Map shows that 2019 deforestation primarily impacts 4 protected areas* in the northwest Colombian Amazon: Tinigua, Serranía de Chiribiquete, and Sierra de la Macarena National Parks, and Nukak National Reserve.

Next, we detail the recent deforestation in these four protected areas of the Colombian Amazon, including the presentation of a series of satellite-based images.

*There are other protected areas in the Colombian Amazon with recent deforestation (such as Picachos and La Paya National Parks), but here we focus on the four with the highest deforestation thus far during 2019.

Deforestation in Protected Areas

We conducted a deforestation analysis within the 4 protected areas noted above (Chiribiquete, Tinigua, Macarena, and Nukak), generating the following key results:

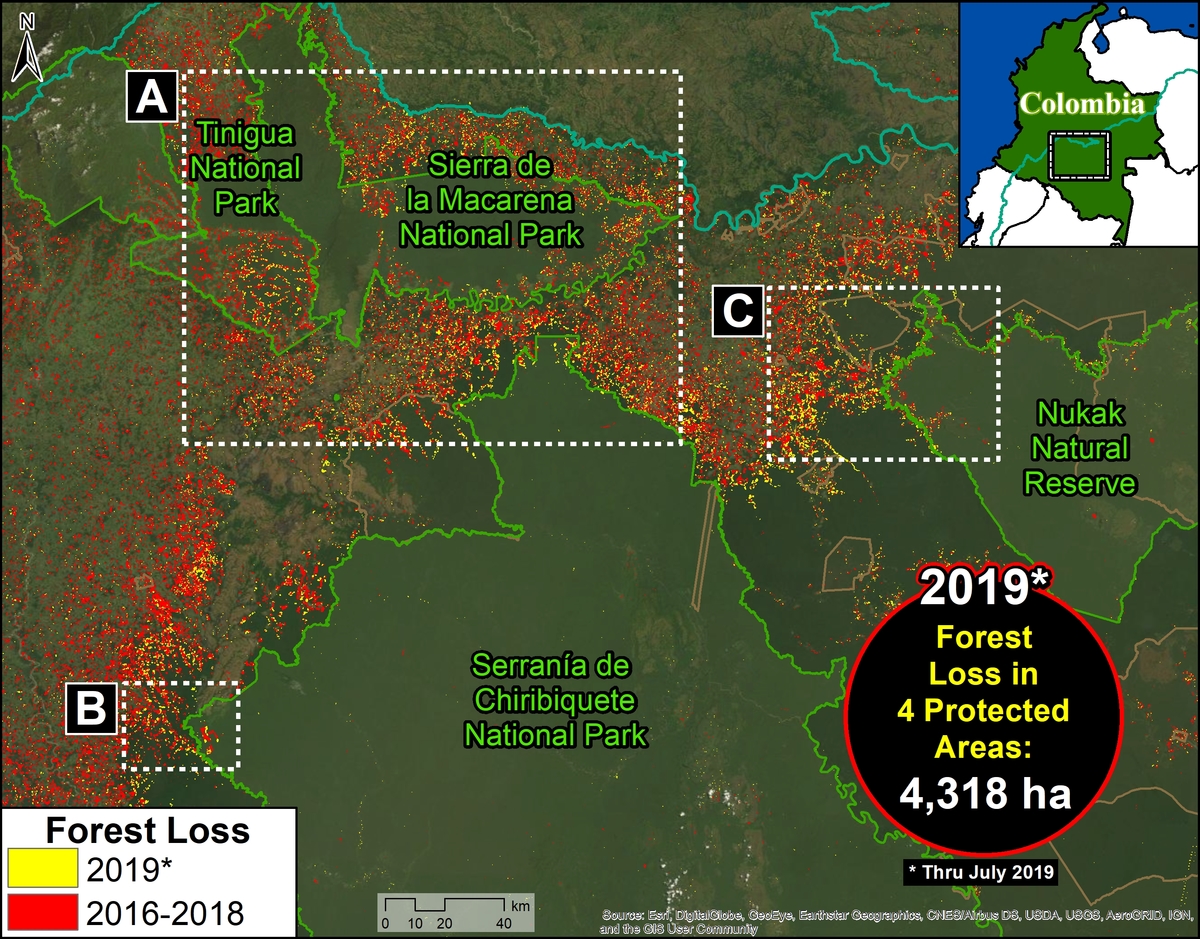

Protected Areas Zoom Map. Deforestation in four protected areas of the Colobian Amazon. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG
Protected Areas Zoom Map. Deforestation in four protected areas of the Colobian Amazon. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG
  • From 2016-18, deforestation claimed over  70,000 acres (29,000 ha) in the four protected areas, 86% of which were primary forests (62,000 acres).
    .
  • Thus far in 2019 (through July 25), deforestation claimed an additional 10,600 acres (4,300 ha), 87% of which were primary forests (9,200 acres).
    .
  • Tinigua National Park has been the most impacted protected area, as deforestation claimed 39,500 acres (16,000 ha) from 2017-19 (96% of which were primary forests). Note the major deforestation spike in 2018.
    .
  • Deforestation has claimed 6,400 acres (2,600 ha) in Chiribiquete National Park since its expansion in July 2018 (96% of which were primary forests).

Zoom A: Deforestation in Tinigua, Chiribiquete, and Macarena National Parks

See location of Zooms A-C in Protected Areas Zoom Map above. Data updated through July 25, 2019.

Zoom A. Deforestation in Tinigua, Serranía de Chiribiquete, and Sierra de la Macarena National Parks, *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG.jpg
Zoom A. Deforestation in Tinigua, Serranía de Chiribiquete, and Sierra de la Macarena National Parks, *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG.jpg

Zoom B. Deforestation in Chiribiquete National Park (western sector)

Zoom B. Deforestation Serranía de Chiribiquete National Park (western sector), *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG
Zoom B. Deforestation Serranía de Chiribiquete National Park (western sector), *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG

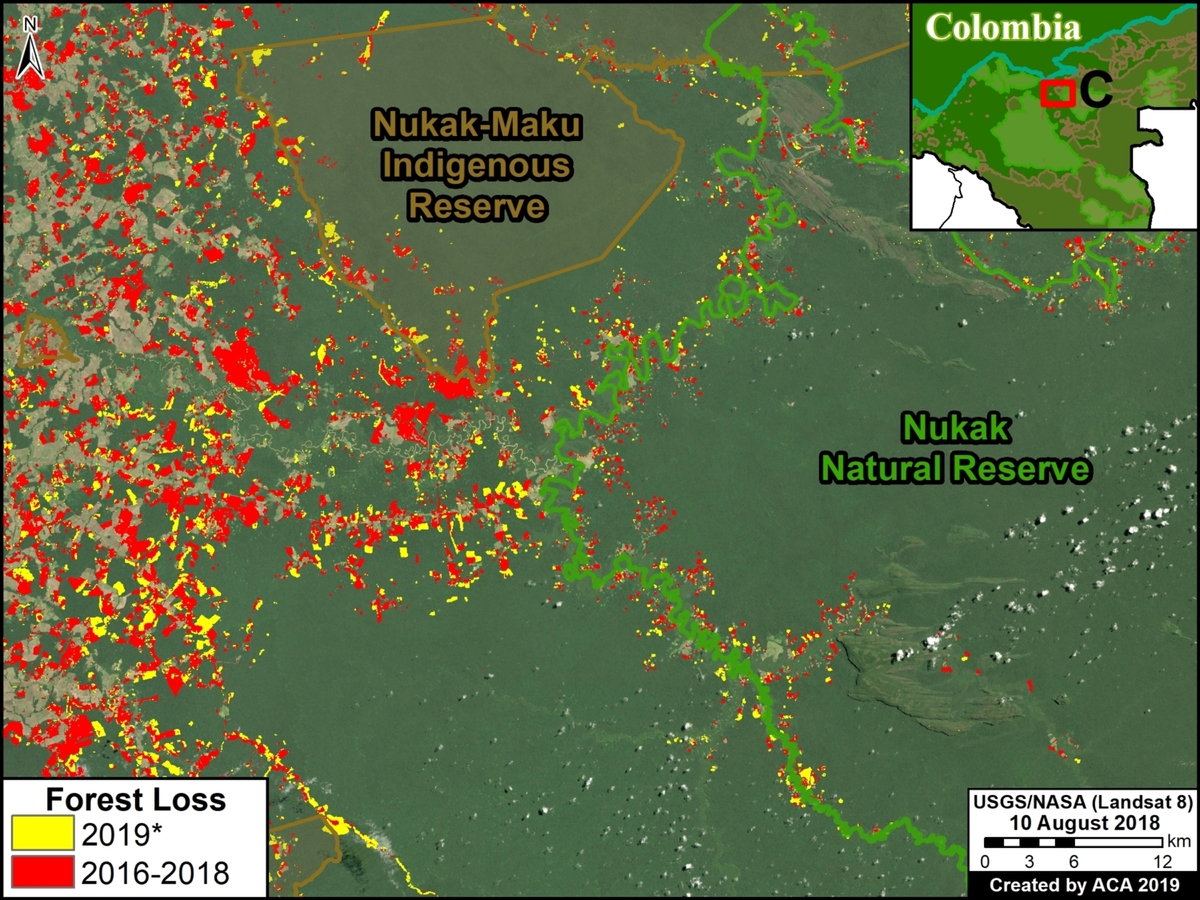

Zoom C. Deforestation in Nukak National Reserve

Zoom C. Deforestation in Nukak National Reserve *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG.jpg
Zoom C. Deforestation in Nukak National Reserve *through July 25, 2019. Data- UMD:GLAD, Hansen:UMD:Google:USGS:NASA, RUNAP, RAISG.jpg

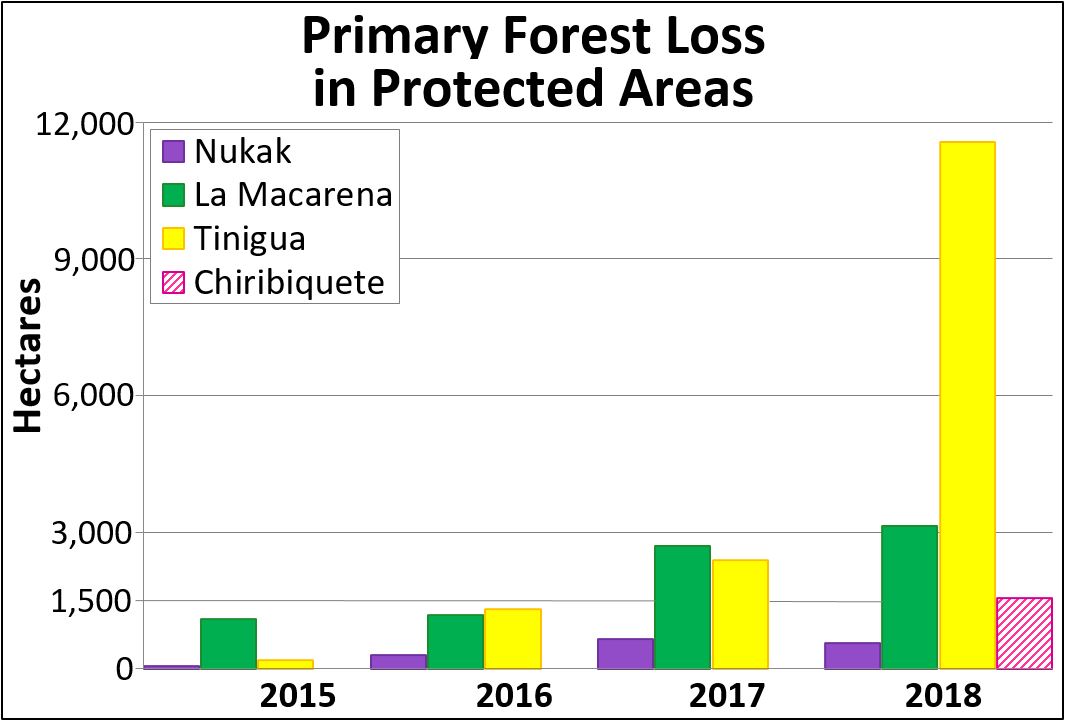

Annex 1: Table
Deforestation of Primary Forest in four protected areas (2015-18)

Annex 1- Table Deforestation of Primary Forest in four protected areas (2015-18)
Annex 1- Table Deforestation of Primary Forest in four protected areas (2015-18)

Annex 2: Map
Deforestation of Primary Forest in four protected areas (2016-19)

Annex 2- Map Deforestation of Primary Forest in four protected areas (2016-19)
Annex 2. Data: Turubanova 2018, UMD/GLAD, Hansen/UMD/Google/USGS/NASA, RUNAP, RAISG

Methodology

We primarily used data generated by the GLAD laboratory of the University of Maryland, available on Global Forest Watch. This data is based on moderate resolution Landsat imagery (30 m). For 2017-18, we analyzed annual data (Hansen et al 2013), and for 2019 we analyzed GLAD alerts (Hansen et al 2016).

For our deforestation estimates, we multiplied the annual “forest cover loss” data by the density percentage of the “tree cover” from the year 2000 (values >30%). Including this percentage allows us to look at the precise area of each pixel, thus improving the preciseness of the results.

We define primary forest as “mature natural humid tropical forest cover that has not been completely cleared and regrown in recent history,” following the definition from Turubanova et al 2018. For our primary forest deforestation estimates, we intersected the forest cover loss data with the additional dataset “primary humid tropical forests” as of 2001 (Turubanova et al 2018). For more details on this part of the methodology, see the Technical Blog from Global Forest Watch (Goldman and Weisse 2019).

All data were processed under the geographical coordinate system WGS 1984. To calculate the areas in metric units the UTM (Universal Transversal Mercator) projection was used: Colombia 18 North.

To identify the deforestation hotspots in the Base Map, we conducted a kernel density estimate. This type of analysis calculates the magnitude per unit area of a particular phenomenon, in this case forest cover loss. We conducted this analysis using the Kernel Density tool from Spatial Analyst Tool Box of ArcGIS. We used the following parameters:

Search Radius: 15000 layer units (meters)
Kernel Density Function: Quartic kernel function
Cell Size in the map: 200 x 200 meters (4 hectares)
Everything else was left to the default setting.

For the Base Map, we used the following concentration percentages: Medium: 10%-25%; High: 26%-50%; Very High: >50%.

References

Hansen, M. C., P. V. Potapov, R. Moore, M. Hancher, S. A. Turubanova, A. Tyukavina, D. Thau, S. V. Stehman, S. J. Goetz, T. R. Loveland, A. Kommareddy, A. Egorov, L. Chini, C. O. Justice, and J. R. G. Townshend. 2013. “High-Resolution Global Maps of 21st-Century Forest Cover Change.” Science 342 (15 November): 850–53.

Hansen, M.C., A. Krylov, A. Tyukavina, P.V. Potapov, S. Turubanova, B. Zutta, S. Ifo, B. Margono, F. Stolle, and R. Moore. 2016. Humid tropical forest disturbance alerts using Landsat data. Environmental Research Letters, 11 (3).

Hansen, M.C., A. Krylov, A. Tyukavina, P.V. Potapov, S. Turubanova, B. Zutta, S. Ifo, B. Margono, F. Stolle, and R. Moore. 2016. Humid tropical forest disturbance alerts using Landsat data. Environmental Research Letters, 11 (3).

Turubanova S., Potapov P., Tyukavina, A., and Hansen M. (2018) Ongoing primary forest loss in Brazil, Democratic Republic of the Congo, and Indonesia. Environmental Research Letters.

Acknowledgements

We thank R. Botero (FCDS), A. Rojas (FCDS) y G. Palacios for helpful comments to earlier versions of this report.

This work was supported by the following major funders: MacArthur Foundation, International Conservation Fund of Canada (ICFC), Metabolic Studio, and Global Forest Watch Small Grants Fund (WRI).

Citation

Finer M, Mamani N (2019) Deforestation impacts 4 protected areas in the Colombian Amazon (2019). MAAP: 106.

MAAP #105: From Satellite To Drone To Legal Action In The Peruvian Amazon

ACOMAT member flying a drone for monitoring. Source- ACCA
ACOMAT member flying a drone for monitoring. Source- ACCA

Amazon Conservation, in collaboration with its Peruvian sister organization, is implementing a project aimed at linking cutting-edge technology (satellites and drones) with legal action, in the southern Peruvian Amazon (Madre de Dios region).

The project is building a comprehensive deforestation monitoring system with a local group of forestry concessionaires, known as ACOMAT,* who manage over 486,000 acres (see Base Map).

The monitoring system has three basic steps:

1) Real-time deforestation monitoring with satellite-based early warning forest loss alerts.*

2) Verify and document the alerts with drone overflights.*

3) Initiate a criminal complaint with the local environmental prosecuter’s office* (or an administrative complaint with the relevant forestry authorities) if suspected illegalities are found.

Below, we describe 6 cases (A-E) that have been generated from this comprehensive monitoring system.

It is important to emphasize that this type of monitoring system, featuring local forest custodians (such as concessionaires and indigenous communities) is possible to replicate in the Amazon and other tropical forests.

This innovative project is largely funded by the Norwegian Agency for Development Cooperation (NORAD) and International Conservation Fund of Canada (ICFC).

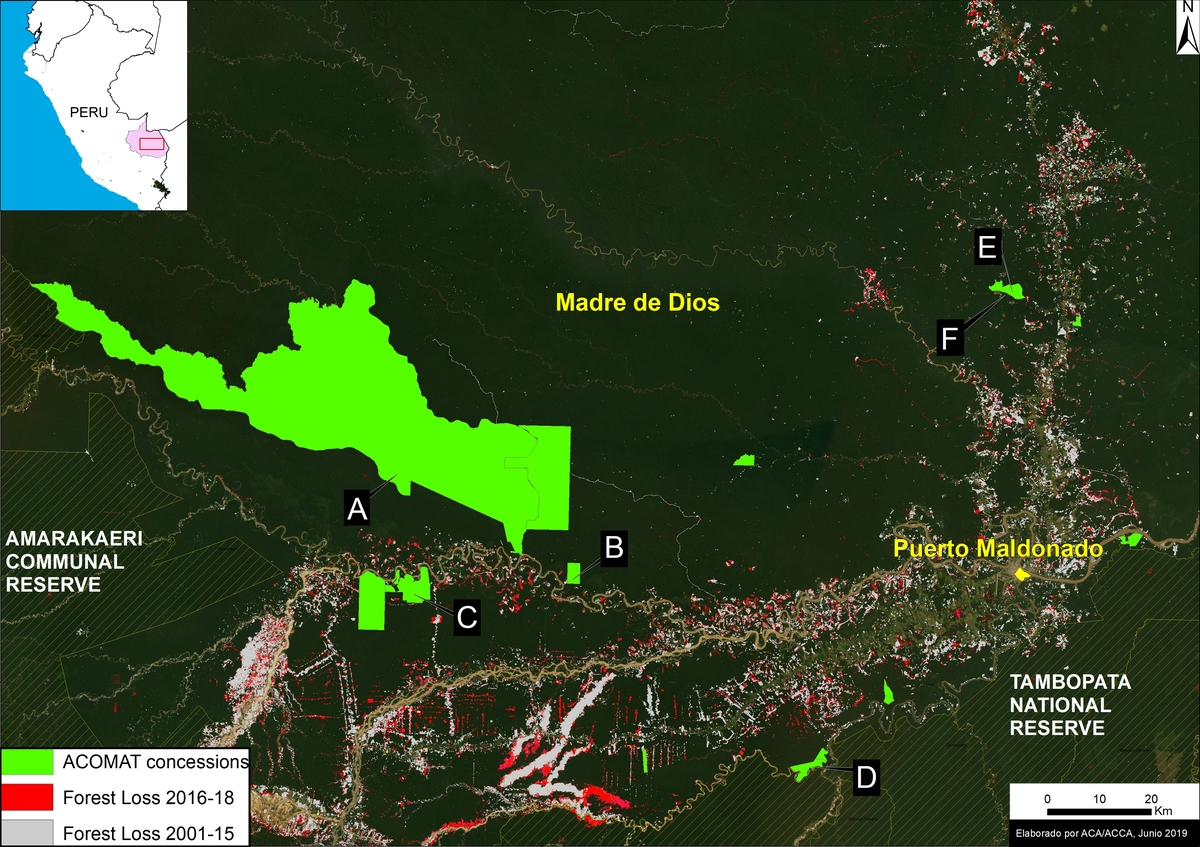

Base Map. The 6 Acomat cases (A-F) described in this report. Data- ACCA, MINAM:PNCB, SERNANP
Base Map. The 6 Acomat cases (A-F) described in this report. Data- ACCA, MINAM:PNCB, SERNANP



Case A. Illegal logging in the “Los Amigos” Conservation Concession

This evidence in this case was obtained from a drone overflight of an area that was the subject of an early warning forest loss alert within Los Amigos Conservation Consession (a conservation area where logging is not permitted). The overflight documented the illegal logging of the timber species known locally as tornillo (Cedrelinga cateniformis) within the concession (see image below).  The drone images were presented to the environmental prosecuter’s office in Madre de Dios as part of a criminal complaint.

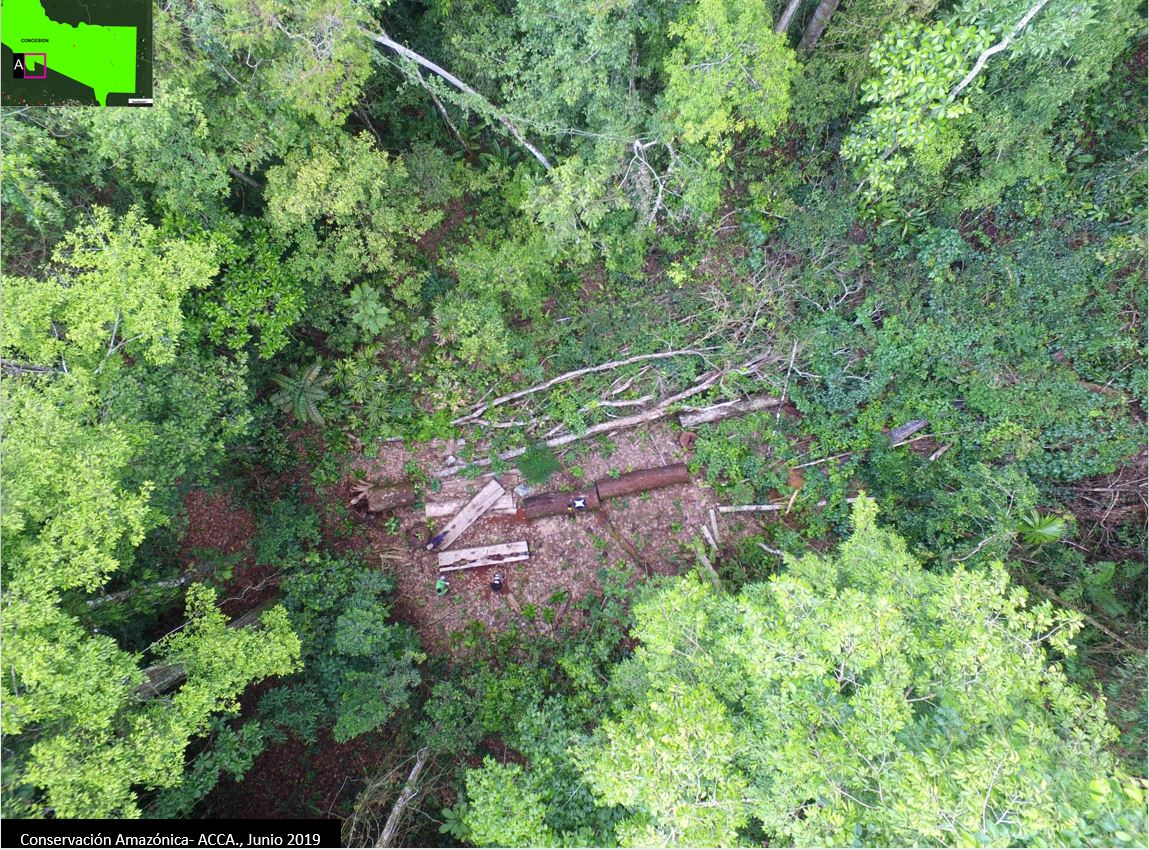

Case A. Illegal logging in the Conservation Concession “Los Amigos”, identified with a drone flying over. Source- ACCA
Case A. Illegal logging in the Conservation Concession “Los Amigos”, identified with a drone flying over. Source- ACCA



Case B. Illegal mining in the “Sonidos de la Amazonía” Ecotourism Concession

The owner of the Sonidos de la Amazonía Ecotourism Concession received an early warning forest loss alert on his cellphone. She then organized a drone overflight and documented active illegal gold mining activity, including infrastructure (see image below). The drone images were presented to the environmental prosecuter’s office in Madre de Dios as part of a criminal complaint.

Case B. Illegal mining in the Tourism Concession “Sonidos de la Amazonía,” identified with drone images. Source- ACCA
Case B. Illegal mining in the Tourism Concession “Sonidos de la Amazonía,” identified with drone images. Source- ACCA



Case C. Illegal mining in the “AGROFOCMA” Forestry Concession

The owner of the AGROFOCMA forestry (logging) concession received an early warning forest loss alert on his cellphone. He then organized a drone overflight and documented active illegal gold mining activity, including infrastructure (see image below). The drone images were presented to the environmental prosecuter’s office in Madre de Dios as part of a criminal complaint.

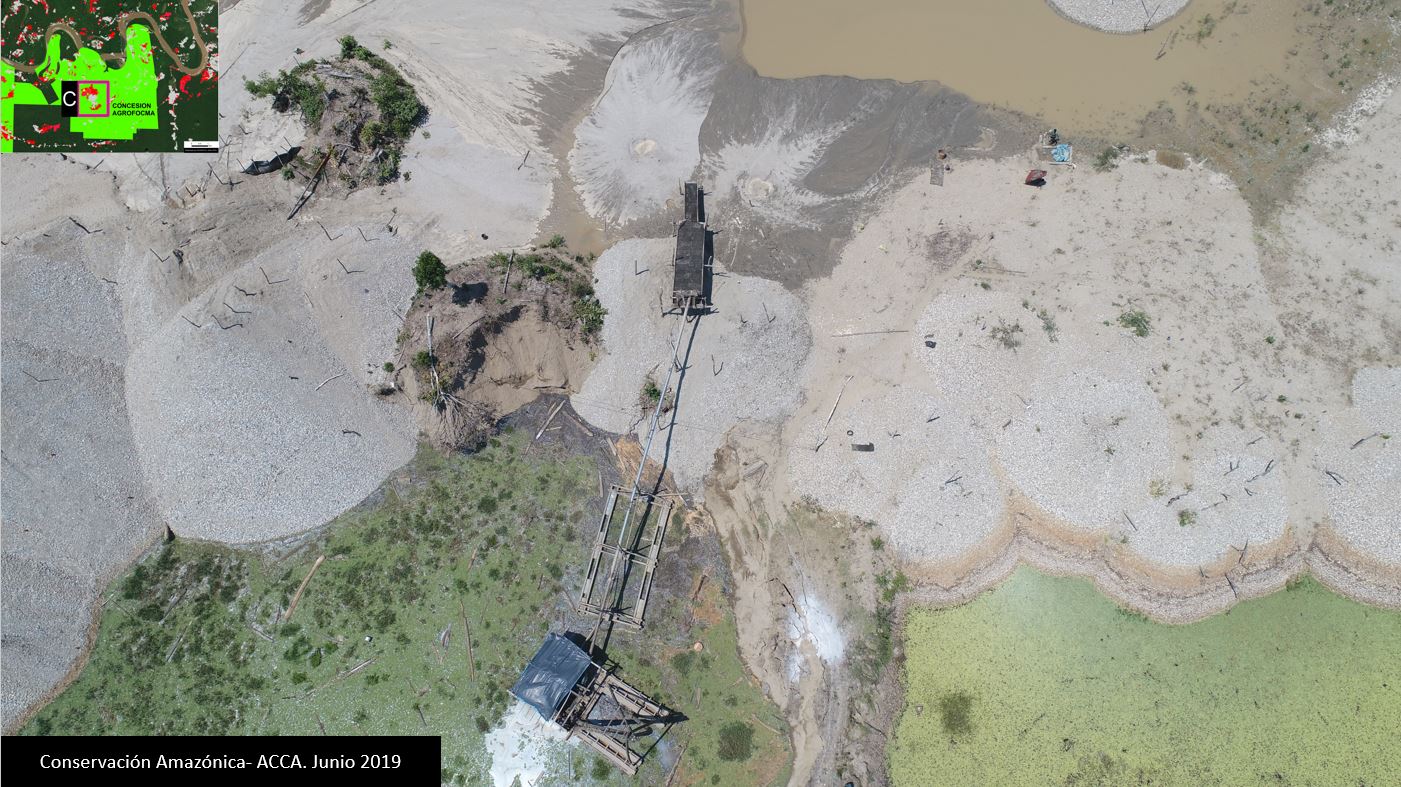

Case C. Illegal mining in the Forest Concession “AGROFOCMA,” identified with drone images. Source- ACCA
Case C. Illegal mining in the Forest Concession “AGROFOCMA,” identified with drone images. Source- ACCA



Case D. Illegal mining in the “Inversiones Manu” Forestry Concession

The owner of the Inversiones Manu forestry (logging) concession received an early warning forest loss alert on his cellphone. He then organized a drone overflight and documented active illegal gold mining activity, including workers and infrastructure (see image below). The drone images were presented to the environmental prosecuter’s office in Madre de Dios as part of a criminal complaint.

Case D. Illegal mining in the Forest Concession “Inversiones Manu,” identified with drone images. Source- ACCA.
Case D. Illegal mining in the Forest Concession “Inversiones Manu,” identified with drone images. Source- ACCA.

Case E. Illegal logging in the “Sara Hurtado” Brazil Nut Concession

The owner of the Sara Hurtado Brazil Nut Concession received an early warning forest loss alert on her cellphone. She then organized a drone overflight and documented active illegal logging activity, including cedar wood planks (see image below). The drone images were presented to the environmental prosecuter’s office in Madre de Dios as part of a criminal complaint.

In a related case, drones also captured images of a nearby collection center and transport truck for the recently logged planks. These images were also presented to the environmental prosecuter’s office as part of a sixth case.

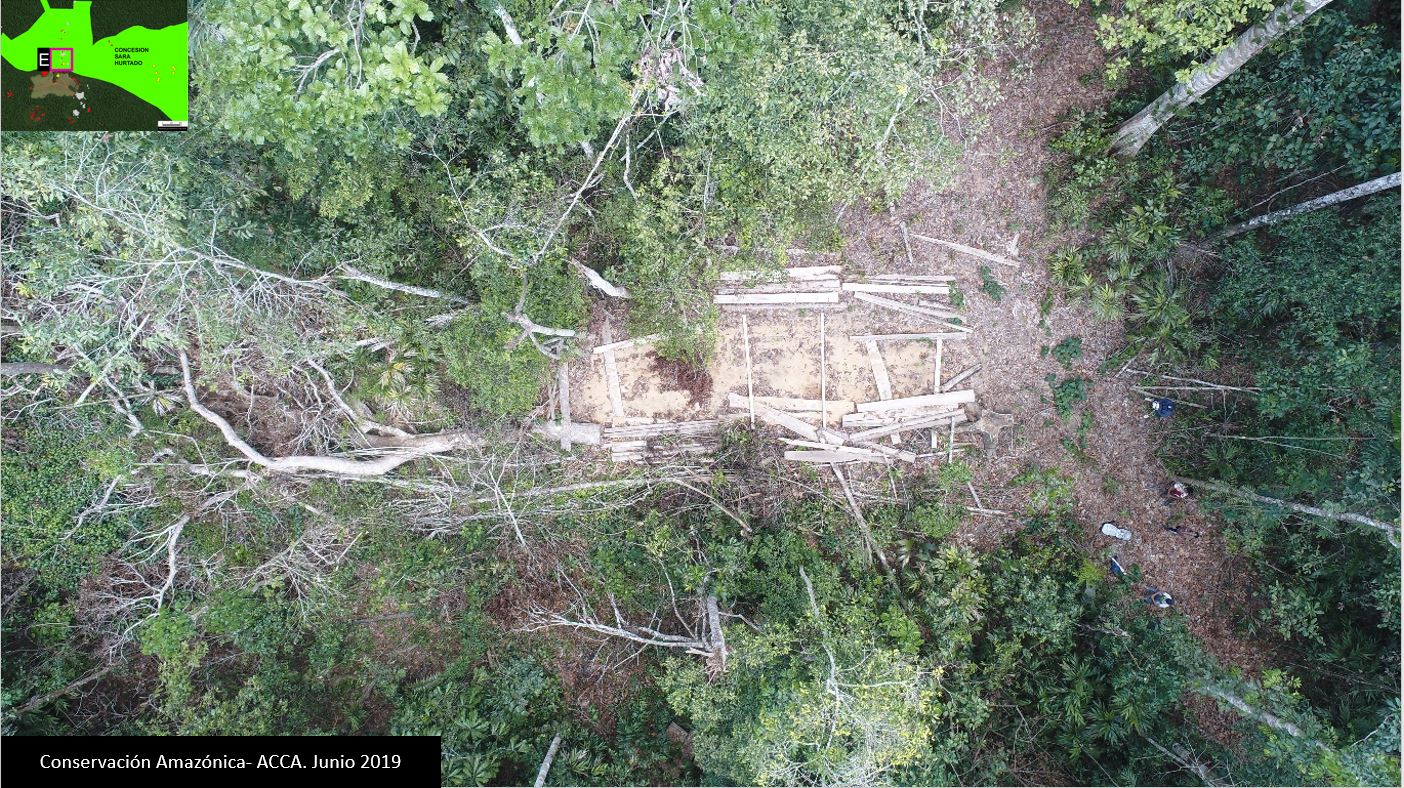

Case E. Illegal logging in the Forest Concession “Sara Hurtado” identified with drone images. Source- ACCA
Case E. Illegal logging in the Forest Concession “Sara Hurtado” identified with drone images. Source- ACCA



*Notes

ACOMAT is the “Asociación de Concesionarios Forestales Maderables y no Maderables de las Provincias del Manu, Tambopata y Tahuamanu.”

The early warning alerts are generated by the Peruvian government (Geobosques/MINAM). GLAD alerts can also be used (these are generated by the University of Maryland and presented by Global Forest Watch). In our case, the concessionaires receive Geobosques alerts in their emails.

We used quadricopter drones. Obtained images are very-high resolution (<5 cm).

The local environmental prosecuter’s office is the “Fiscalía Especializada en Materia Ambiental (FEMA) de Madre de Dios.”



Acknowledgements

We thank S. Novoa (ACCA), H. Balbuena (ACCA), E. Ortiz (AAF), T. Souto (ACA), P. Rengifo (ACCA), A. Condor (ACCA), y G. Palacios for helpful comments on earlier drafts of this report.

This work supprted by the following funders:  Norwegian Agency for Development Cooperation (NORAD), International Conservation Fund of Canada (ICFC), MacArthur Foundation, Metabolic Studio.



Citation

Guerra J, Finer M, Novoa S (2019) From satellite to drone to legal action in the Peruvian Amazon. MAAP: 105.

Mercury: an increasing threat in the tropics

The rainforest is a highly diverse and complex ecosystem, of which only a very small percentage is known. Because the impact of different disturbances within it is not fully understood, protecting its integrity should be the end goal. However, the threats affecting this ecosystem are only increasing over time, including deforestation and mercury pollution caused by mining.

Mercury can be found in many forms, and while these are naturally available in the environment, a great amount results from its use in human activities like gold mining. Furthermore, although not all of its forms are toxic, methylmercury, the most bioavailable and toxic, bio-accumulates within the food chain, affecting a wide range of species. Bioaccumulation of this neurotoxin in birds has been seen to affect the fitness, coordination, reproduction and survival of species. Its effects include lethargy, loss of appetite, aberrant parenting behavior and reduced motivation to forage. Unfortunately, mercury’s persistence in the atmosphere and ability to travel great distances has allowed it to contaminate areas far from the original source.

Roadside Hawk (Rupornis magnirostris) and a boat carrying oil for mining share the same ecosystem. PC: Patrick Newcombe

Aquatic systems are most efficient at converting mercury to methylmercury, increasing the risk of aquatic species. Because of this, much of the attention and studies of mercury contamination in birds has been focused on species associated with bodies of water. Conversely, terrestrial habitats and their wildlife have received little attention. Variations in soil moisture are expected to increase the bioavailability of mercury; increasing the risk of the long, wide, and complex food webs found in tropical systems.

Diego Guevara, 2019 Franzen fellows,
is studying bird community in areas
impacted by mining.

Because birds are often near or in the top of food chains, they are highly prone to accumulating mercury in their bodies. However, this fact does also make them very good bio-indicators of environmental mercury contamination. They are common, conspicuous, and sampling of feathers and eggshells can confidently detect levels of heavy metals in a non-invasive manner. Particularly in tropical rainforests, more work needs to be done to assess the impact of mercury on birds.

The increasing threat mercury pollution poses to the tropics is drawing more and more attention to this region. As a short-term measure, it is necessary to replace current gold mining techniques, with already existing mercury-free methods. By moving away from this metal, we will ensure healthy human and wildlife communities and more crucially a healthy ecosystem.

Further readings:

Egwumah F.A, Egwumah P.O & Edet, D.I. (2017). Paramount roles of wild birds as bioindicators of contamination. Int J Avian & Wildlife Biol. 2(1):194‒200. DOI: 10.15406/ijawb.2017.02.00041

Appel, Peter & Jøsson, J.B.. (2010). Borax – an alternative to mercury for gold extraction by small-scale miners: Introducing the method in Tanzania. Geological Survey of Denmark and Greenland Bulletin. 87-90.



New UN report shows that protecting and restoring forests and wetlands is a key climate change mitigation strategy

The Intergovernmental Panel on Climate Change (IPCC), the United Nations body for assessing the science related to climate change, has released a new report on the intersection of climate change and land use.

The report analyzed over 7,000 scientific publications on the topics of land-climate interactions, including land degradation, desertification, and food security. It found that changes in land conditions, either from land-use or climate change, affect global and regional climate, and at the regional scale, these negative conditions can reduce or accentuate warming and affect the intensity, frequency, and duration of extreme climate events.

Manu National Park, Peru – August 06, 2017: Family of Capybara at the shores of the Amazon rainforest in Manu National Park, Peru

The report also found that in order to keep warming to 1.5ºC or well below 2°C as recommended by the Paris Agreement, major changes in how we use land need to take place. Sustainable land management, including sustainable forest use, can prevent and reduce land degradation, maintain land productivity, and sometimes reverse the adverse impacts of climate change on nature and people.

IPCC concluded that one of the central strategies to mitigate climate change is to protect the forests and wetlands that are still standing and to restore as much of the currently degraded land as possible. This is the type of conservation action we are taking in the headwaters of the Amazon – one of the last wild places left on Earth. By creating new conservation areas, empowering forest users and farmers to use land and natural resources sustainably, and reforesting degraded land, we help mitigate the effects of climate change on all of us.

Read the IPCC full press release here.

MAAP #104: Major Reduction In Illegal Gold Mining From Peru’s Operation Mercury

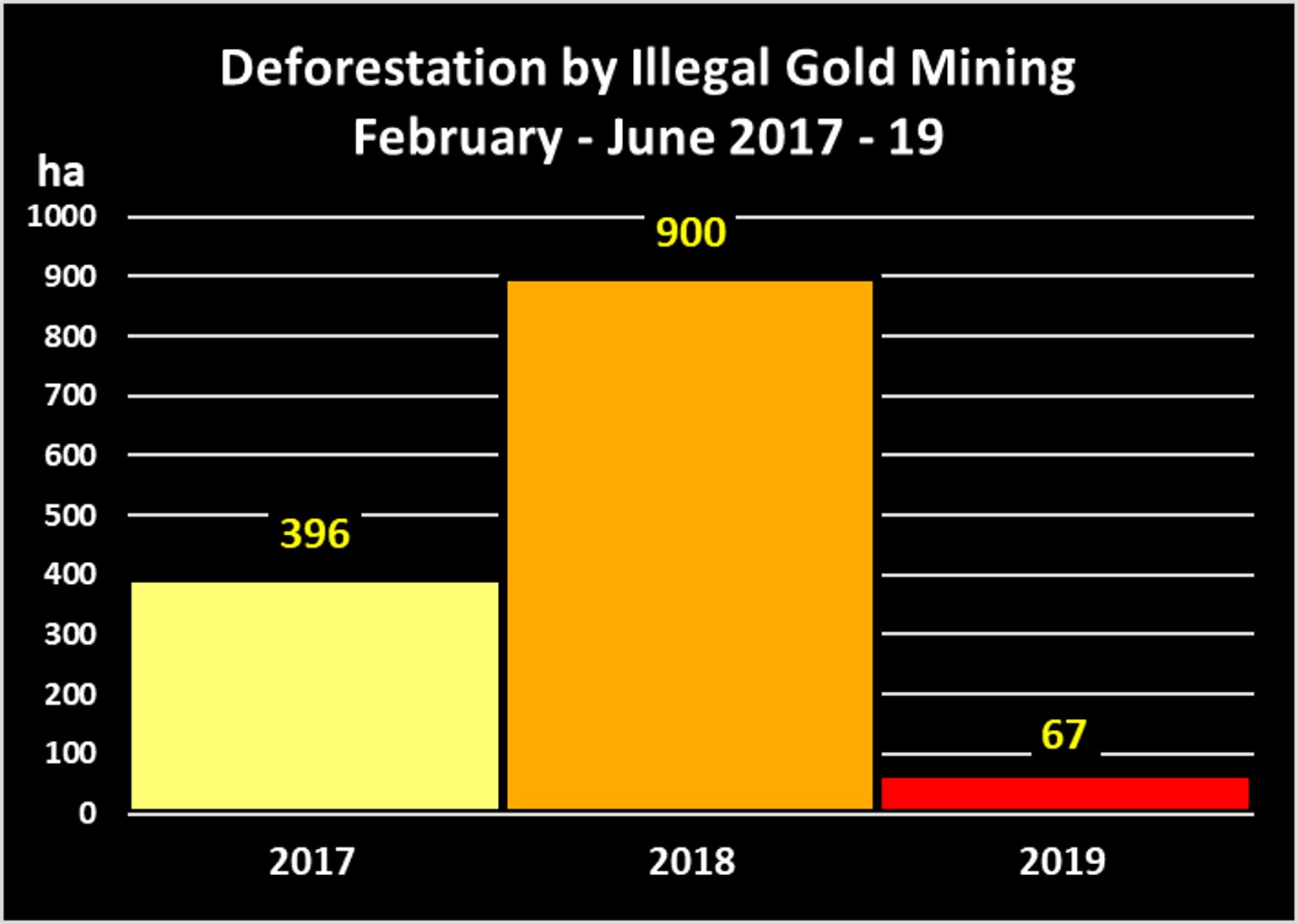

Graph 1. Illegal gold mining deforestation in La Pampa, 2017-19. Data- ACA, MAAP.
Graph 1. Illegal gold mining deforestation in La Pampa, 2017-19. Data- ACA, MAAP.

In February 2019, the Peruvian government launched Operation Mercury (Operación Mercurio), a major multi-sectoral crackdown on the illegal gold mining crisis in the area known as La Pampa,* located  in the southern Peruvian Amazon (Madre de Dios region). Note that this area is not within Tambopata National Reserve, but in its buffer zone.

In this report, we present the results of our analysis on the initial impacts of this Operation.

We found a major reduction in gold mining deforestation in La Pampa in 2019, compared to the same time period (February – June) of the previous two years (see Graph 1).

In fact, the gold mining deforestation decreased 92% between 2018 (900 hectares) and 2019 (67 hectares), representing the situation before and after the start of Operation Mercury.

The Base Map illustrates how the expansion of gold mining deforestation greatly dropped in 2019 compared to the two previous years, especially in the eastern front. The letters (A-C) correspond to the location of the Zooms, below.

The analysis also reveals, however, that the gold mining deforestation in La Pampa has not yet been completely eradicated and continues in numerous remote and isolated areas.

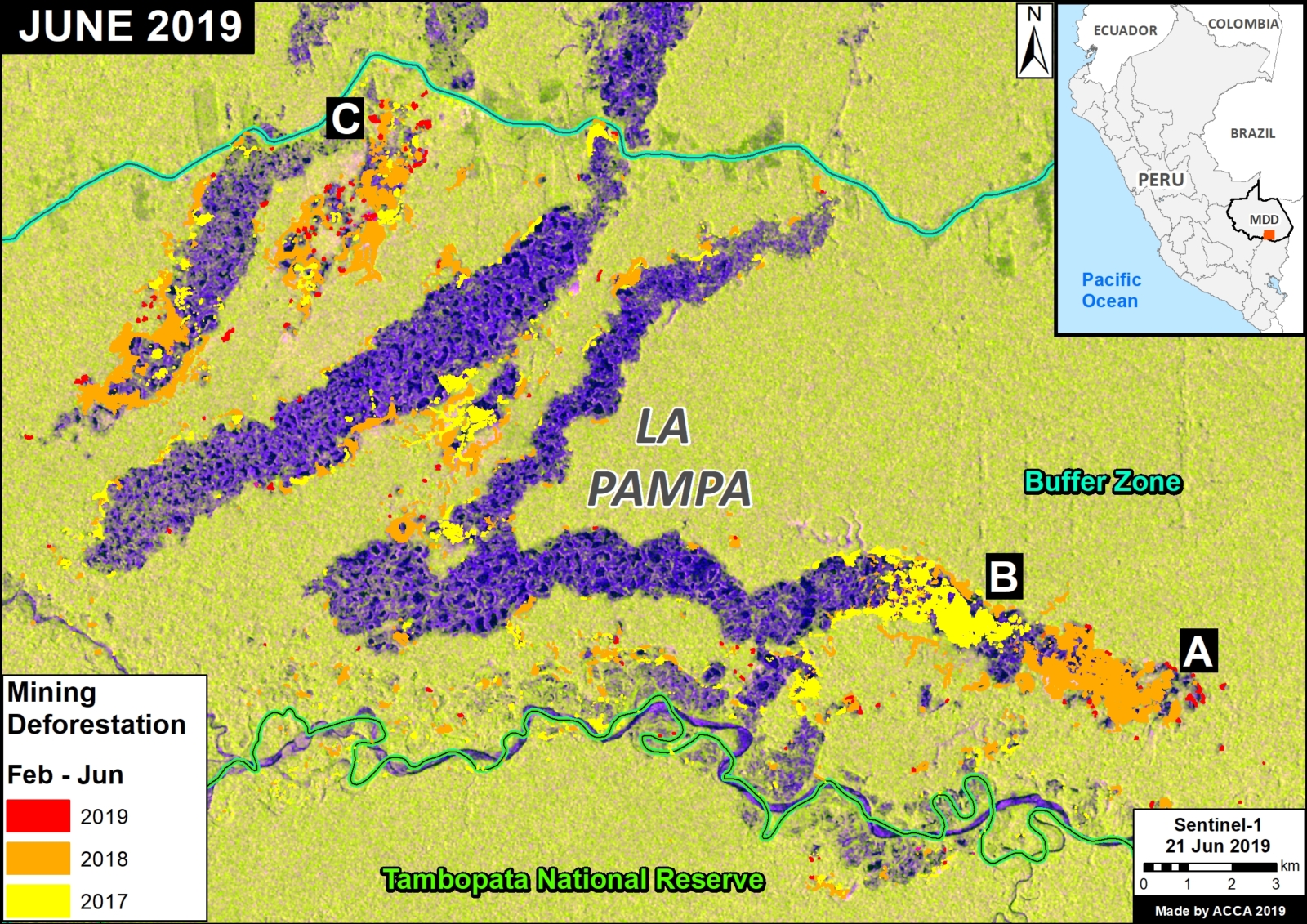

Base Map. Illegal gold mining deforestation in La Pampa. Data- ACCA, MAAP, SERNANP
Base Map. Illegal gold mining deforestation in La Pampa. Data- ACCA, MAAP, SERNANP

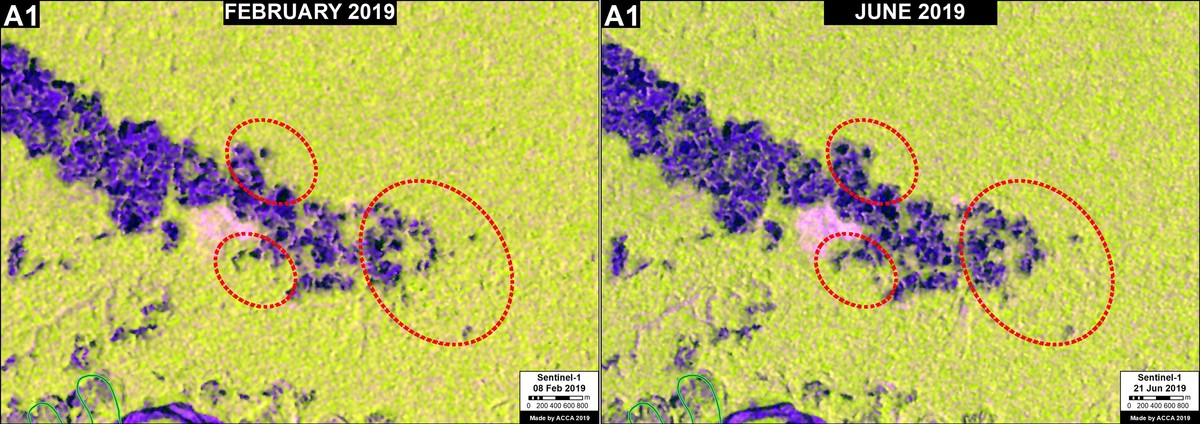

Zoom A1 shows the critical eastern front of the gold mining deforestion between February (left panel) and June (right panel) 2019, the first five months of Operation Mercury. While the rapid eastward expansion of the front has greatly decreased, the red circles indicate areas where we have detected isolated mining activity.

Zoom A1. Eastern front of the gold mining deforestation in La Pampa. Data- ESA, MAAP
Zoom A1. Eastern front of the gold mining deforestation in La Pampa. Data- ESA, MAAP

High Resolution Zooms

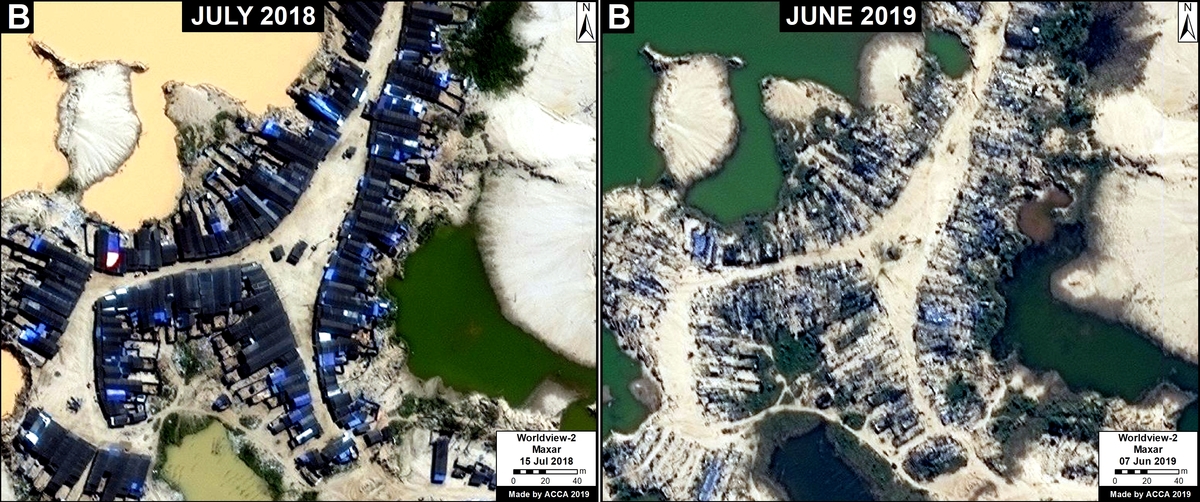

Zoom B shows the eradication of one of the biggest mining camps in La Pampa between 2018 (left panel) and 2019 (right panel).

Zoom B. Eradication of major gold mining camp. Data- Maxar
Zoom B. Eradication of major gold mining camp. Data- Maxar

The following Zooms show examples of the persistence of isolated illegal gold mining activity and infrastructure in La Pampa, with recent (June 2019) high resolution satellite and drone images. The letters (A2, C1, C2) correspoind to the Base Map, above.

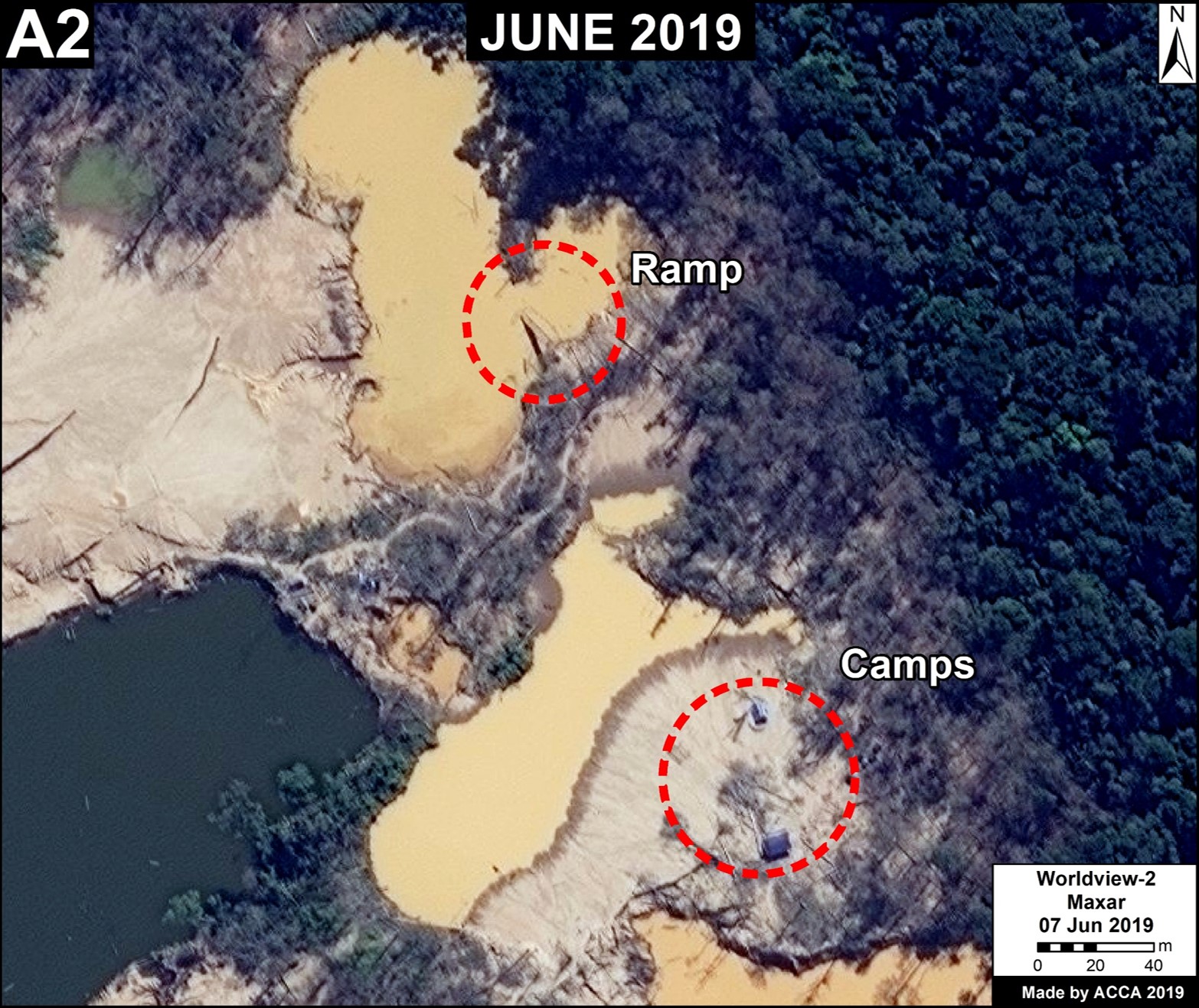

Zoom A2. Data- Maxar, MAAP
Zoom A2. Data- Maxar, MAAP

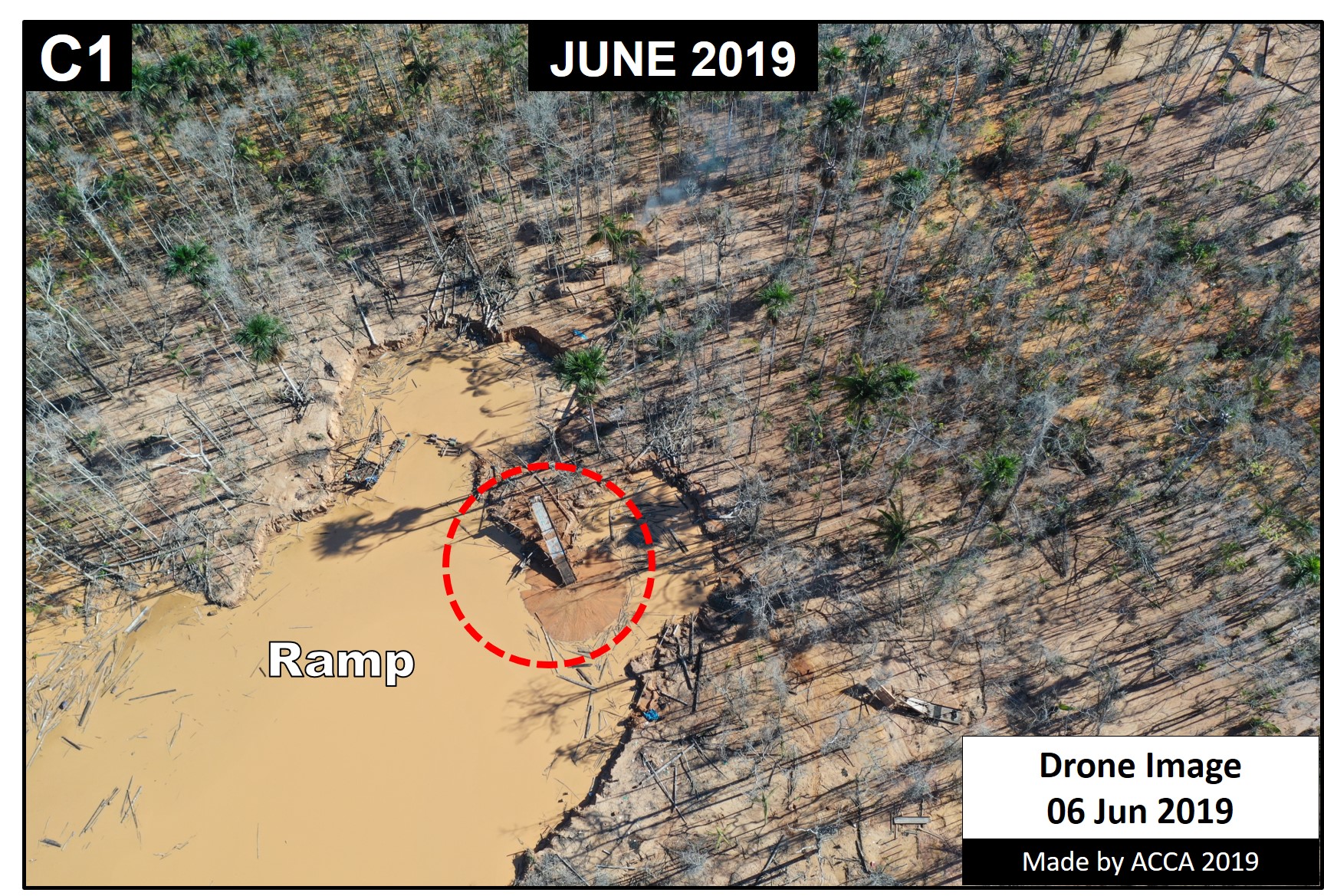

Zoom C1. Data- ACCA
Zoom C1. Data- ACCA

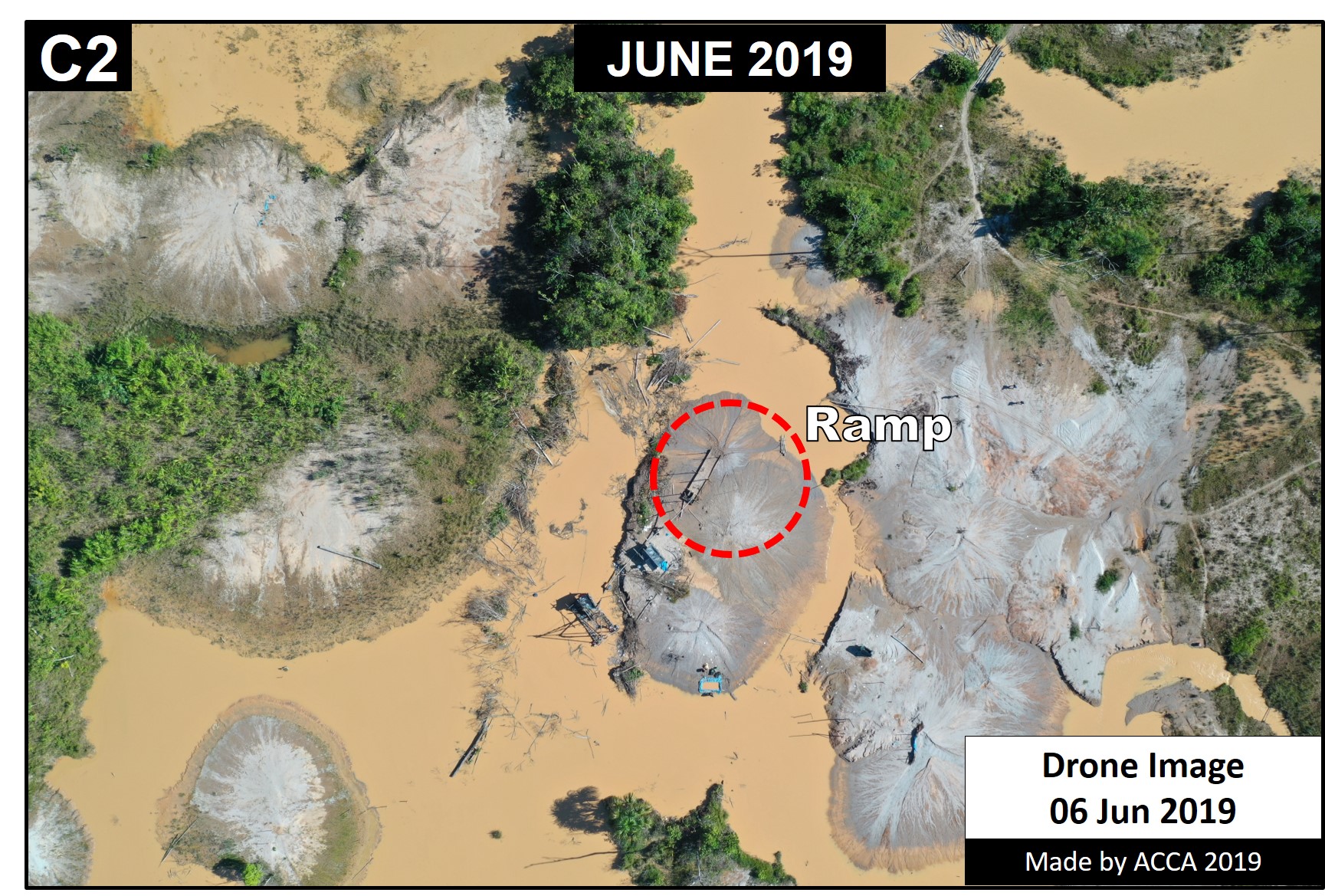

Zoom C2. Data- ACCA.
Zoom C2. Data- ACCA.



Google Earth Engine App

We present a new app, developed with Google Earth Engine, that allows an interactive visualization of the evolution of gold mining deforestation in La Pampa. The app allows the user to take advantage of Google’s powerful computers to compare (with a slider) different dates from a large archive of Sentinel-1 satellite images (see screenshot, below). Sentinel-1 is radar, so there are no clouds in the images.

https://luciovilla.users.earthengine.app/view/mining-monitoring-by-sar-sentinel-1

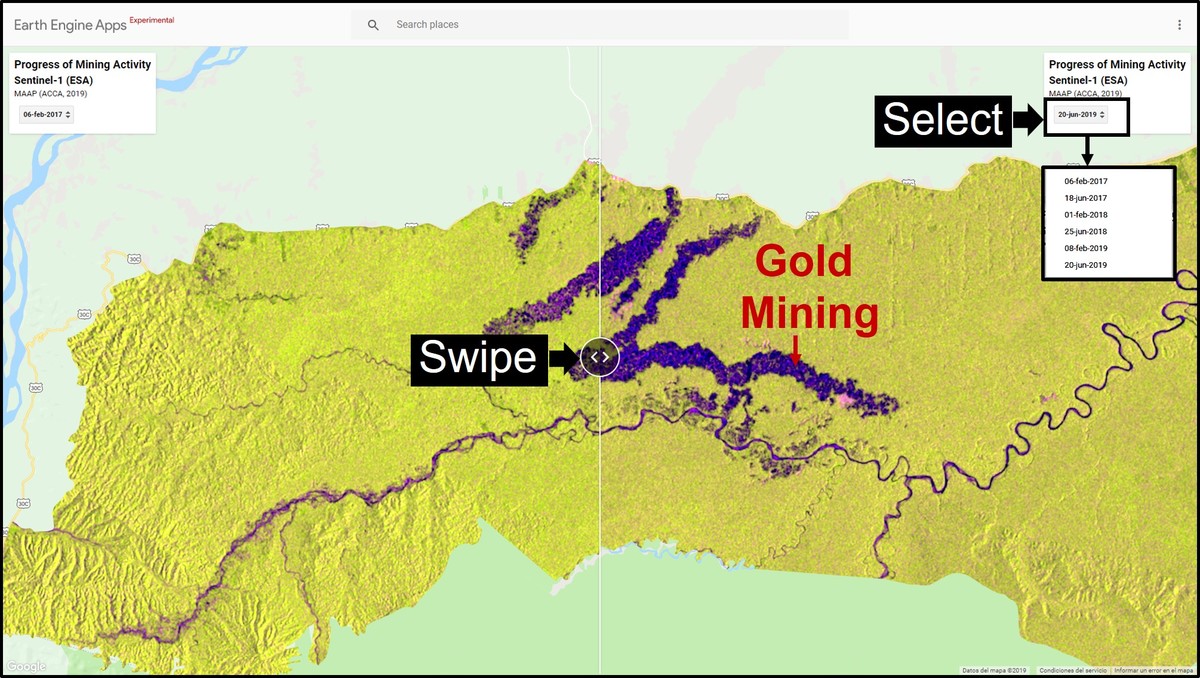

Screen shot of the app. Data- ESA, MAAP
Screen shot of the app. Data- ESA, MAAP



Notes

*La Pampa is the sector located in the buffer zone of Tambopata National Reserve, delimited by the northern boundary of the reserve, the Malinowski River and the Interoceanic Highway.

Full study area of La Pampa (shaded). Data: ACCA, MAAP.

Acknowledgements

We thank S. Novoa (ACCA), H. Balbuena (ACCA), E. Ortiz (AAF), T. Souto (ACA), P. Rengifo (ACCA), A. Condor (ACCA), y G. Palacios for helpful comments on earlier drafts of this report.

This work supprted by the following funders:  Norwegian Agency for Development Cooperation (NORAD), International Conservation Fund of Canada (ICFC), MacArthur Foundation, Metabolic Studio, and Global Forest Watch Small Grants Fund (WRI).

Citation

Villa L, Finer M (2019) Major Reduction in Illegal Gold Mining from Peru’s Operation Mercury. MAAP: 104.
